CABLE TRACER KIT FILTERED PROBE & TONE GENARATOR KIT 60HZ

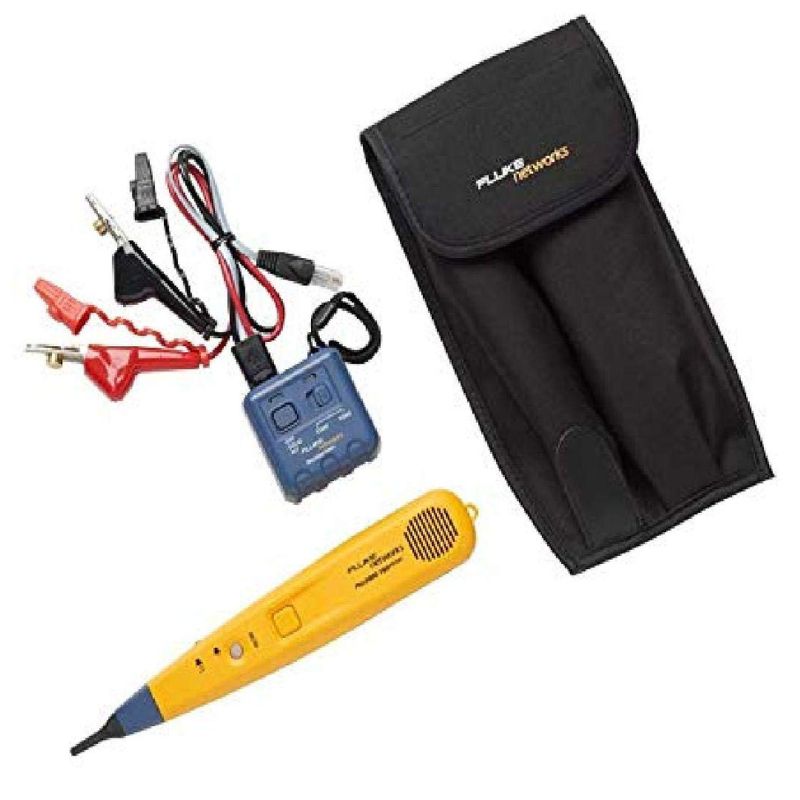

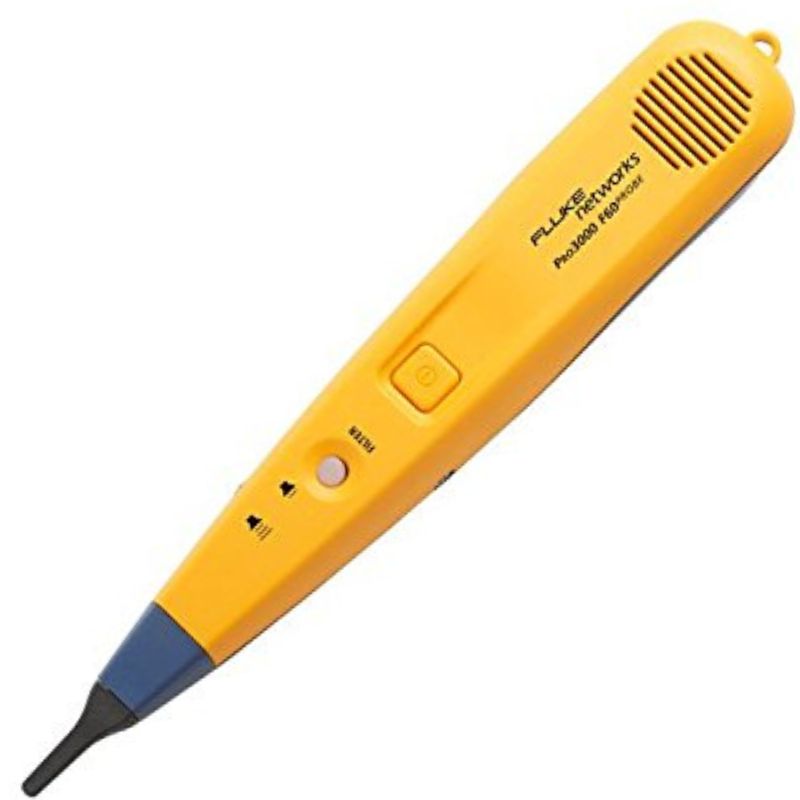

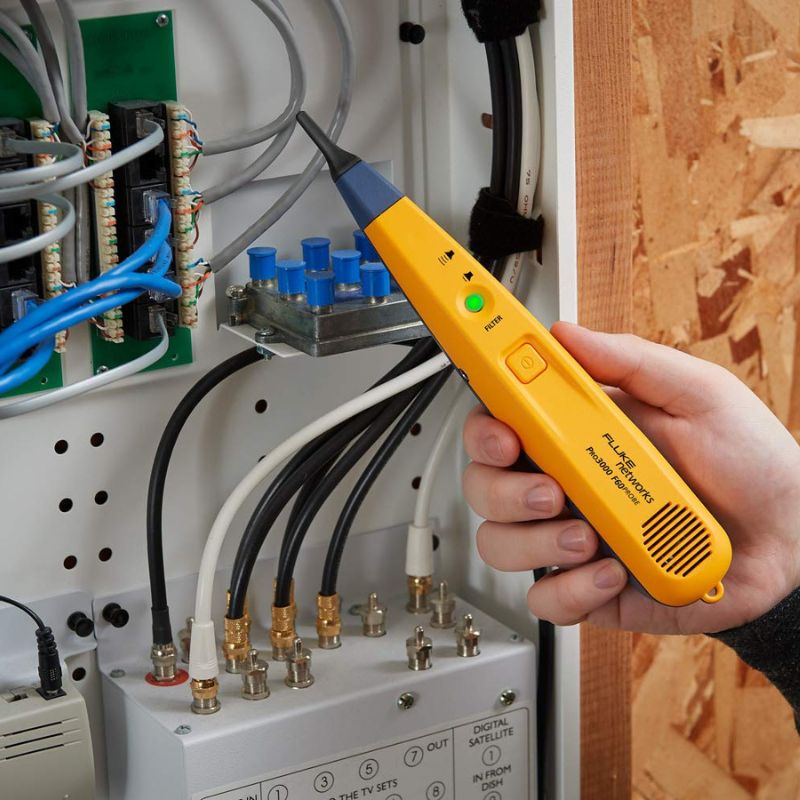

PRO3000F60-KIT Filtered Probe & Tone Generator Kit, Network Cable Tester, 60Hz Signal Interference can be caused by multiple sources (I.e. power cables, fans, lighting, etc.) and can make tracing communication cabling almost impossible. The Pro3000F probe utilizes innovative filter technology to obstruct signal interference to make tracing your cable easier, regardless of the work environment. Depending on the region, signal interference may be at 60 Hz, which is most common in North America, The Pro3000F60, which obstructs 60 Hz signals and its harmonics . Technicians can also switch between filtered and unfiltered modes with a simple push of a button. The probe’s loud speaker also allows for use in noisy locations and for tracing cable through drywall, wood and other enclosures. The probe also touts an auto-off feature that deactivates the probe after 5 minutes to conserve battery life. The Pro3000F Filtered probe becomes even more useful when paired with the Pro3000 Tone Generator. The Pro3000 Tone Generator allows for direct connection to un-terminated wire using the angle bed of nails clips or terminated RJ-type jacks with the male RJ-11 plug. The tone generators strong tone and SmartTone™ technology allows for precise pair identification up to 10 miles (16 km) away. Pro3000 Analog Tone Generator and SmartTone™ Use the SmartTone™ capability of the Pro3000 Tone Generator to identify the right pair. Simply short the selected pair at the near or far end to change the cadence of the tone generated. The tone change you hear through the probe can help you identify the correct wire pair. SmartTone™ provides five distinct tones for exact pair identification. Tone Generator features: SmartTone™ Send tone signal up to 10 miles on most cables Line cord features angled bed-of-nails clips and a rugged RJ-11 plug for direct access to phone and data jacks without adapters External switch allows selection of solid or alternating tone options, indicated with solid or flashing LEDs Continuity Testing Line polarity confirmation Pro3000F Filtered Probe features: Innovative filtered probe obstructs signal of 60 Hz or 50 Hz external interference Switch between filtered and unfiltered modes with one button press. Tone and trace wire on non-active networks Auto-off capability extends battery life Loud probe speaker is audible in noisy locations

---

Pro 3000 Toner Specifications User Interface Slide Switch selects Continuity or Tone Mode Push button switch selects SOLID, ALT, or OFF Tone mode LED Continuity/Polarity LED Solid Frequency 1000 Hz nominal Alternating Frequency 1000/1500 Hz nominal Over Voltage Protection/td> 60 Vdc in Toner/Polarity Mode Output Power in Tone Mode 8 dbm into 600 ohms Output Voltage Level in Continuity Mode 8 Vdc with fresh battery Battery 9V alkaline Temperature Operating: -20°C to 60°C, Storage: -40° to 70° C Dimensions 2.7 in. x 2.4 in. x 1.4 in. (6.9 cm x 6.1 cm x 3.6 cm) Pro3000F Filtered Probe Specifications User Interface ON/OFF button (Push 1 second to activate, Press to turn off, Auto-off after 5 minutes) Filtered/Unfiltered Mode Button with LED (Green = Filtered, Red = Unfiltered) Volume dial Replaceable tip 3.5 mm earphone jack Frequencies filtered Pro3000F60 Probe: 60 Hz and its harmonic frequencies Pro3000F50 Probe: 50 Hz and its harmonic frequencies Battery 9V alkaline Temperature Operating: -20° C to 60° C, Storage: -40° to 70° C Dimensions 9.8 in. x 1.6 in. x 1.3 in. (24.9 cm x 4.1 cm x 3.3 cm)

• Age

  0+

• Part No

  PRO3000F60-KIT

• Manufacturer

  FLUKE

• Stock No

  MTE-391

• SKU No

  260792

To purchase bulk quantities, Please contact our Sales Department
(+1-416-494-8999) or email shop@sayal.com
