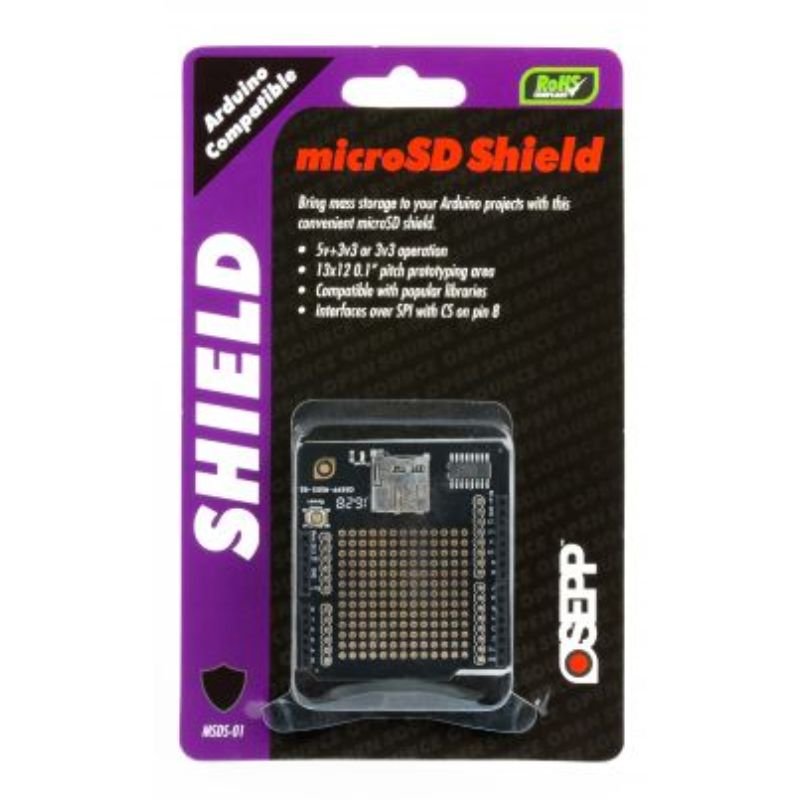

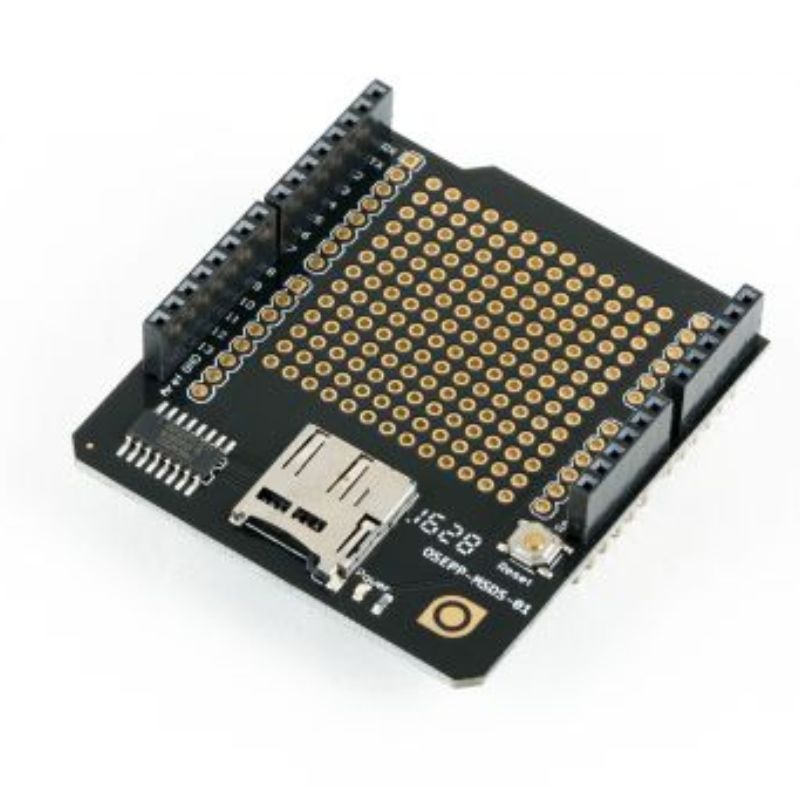

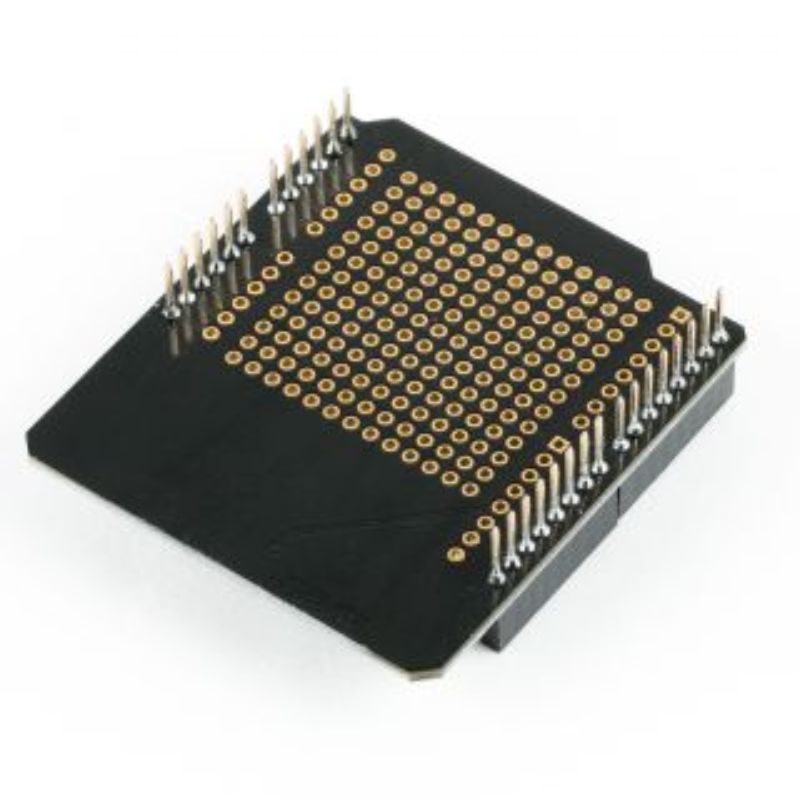

micro SD Shield
Bring mass storage to your Arduino projects with this convenient microSD shield.
The SD card interfaces over SPI (SCK on D13, MISO on D12, MOSI on D11, and CS on D8). Since SD cards run at 3v3 we’ve included a level shifter so you can use the 5v logic found on popular Arduino boards.
Features:
5v+3v3 or 3v3 operation
13×12 0.1” pitch prototyping area
Compatible with popular libraries
Interfaces over SPI with CS on pin 8
*Prices subject to change without notice. We reserve the right to limit quantities.
-
Age
10+
-
Part No
MSDS-01
-
Manufacturer
OSEPP
-
Stock No
1813-FB3
-
SKU No
247326
Limited Stock Available To purchase, Please contact our Sales Department
(+1-416-494-8999) or email shop@sayal.com
