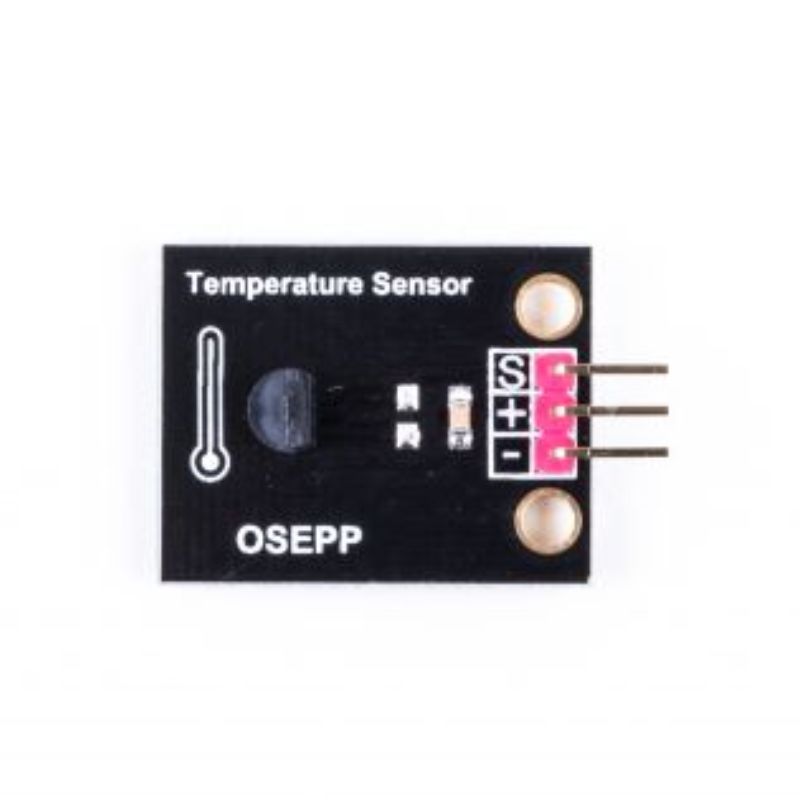

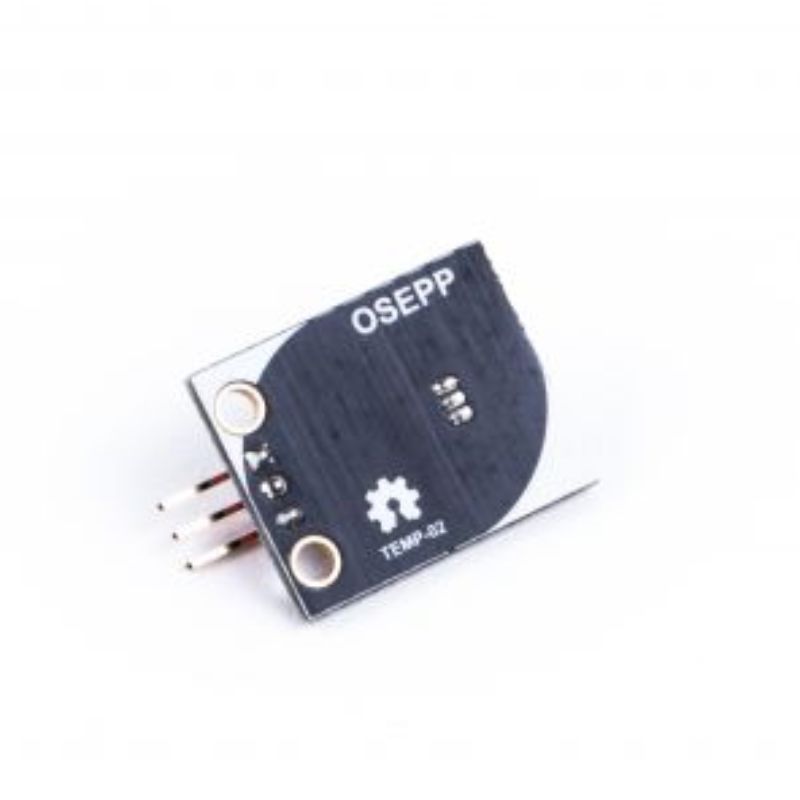

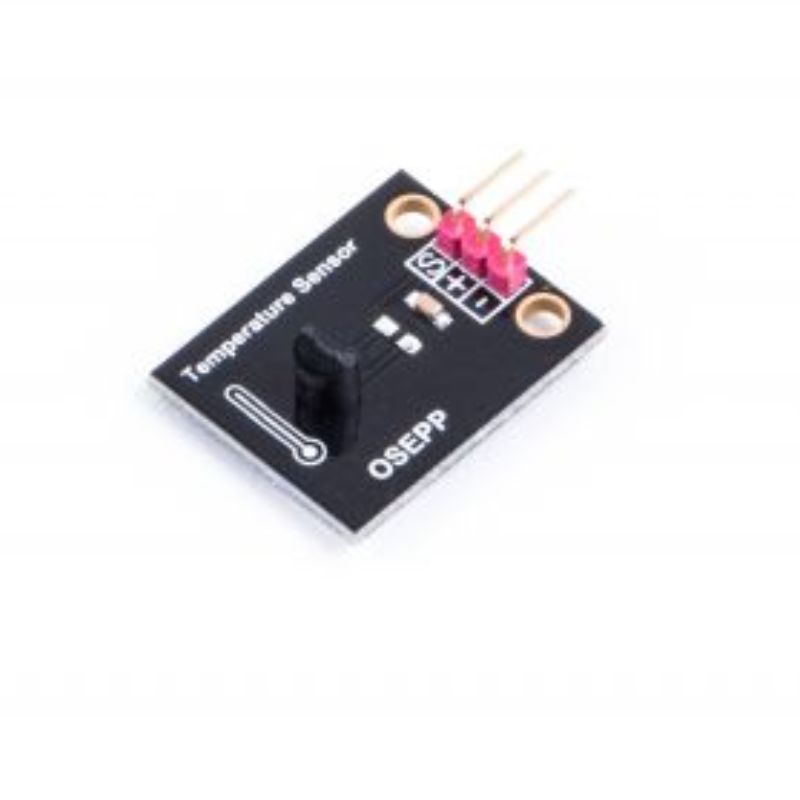

LM35 Temperature Sensor Module
LM35 Temperature sensor uses the LM35 integrated circuit. Can be used in numerous weather detection applications for home automation / weather monitoring. Breakout board format allows for easy interfacing with Arduino.
3 Pin Outs: GRD (-) VCC (+) S-Signal Rated for Full – 55°C to + 150°C Range
Features
Calibrated directly in ° Celsius (Centigrade)
Linear + 10 mV/°C Scale Factor
0.5°C Ensure accuracy (at +25°C)
Suitable for remote applications
Low cost due to wafer-level trimming
Operates from 4 to 30V
Less than 60-
SCHEMATIC
https://www.osepp.com/downloads/pdf/TEMP-01.pdf
-
Part No
TEMP-01
-
Manufacturer
OSEPP
-
Stock No
1814-CB1
-
SKU No
247323
