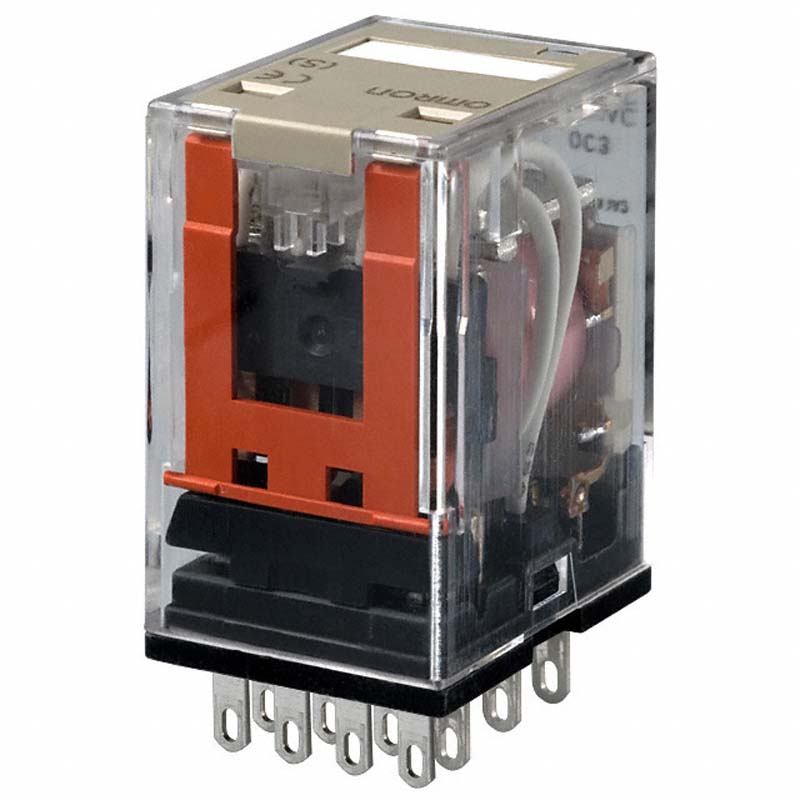

Power Relay, 4PDT, 120 VAC, 5 A, MY Series, Socket, Non Latching
Product Information
Contact Configuration:
4PDT
Coil Voltage:
120VAC
Contact Current:
5A
Product Range:
MY Series
Coil Type:
Non Latching
Contact Voltage VAC:
250VAC
Relay Terminals:
Quick Connect
Relay Type:
Power - General Purpose
Contact Voltage VDC:
30VDC
Contact Material:
Silver Alloy
Coil Resistance:
4.43kohm
Approvals & Standards:
CSA, UL
Contact resistance 100 mΩ max.
Operate time 20 ms max.
Release time 20 ms max.
Max. operating frequency Mechanical 18,000 operations/hr
Electrical 1,800 operations/hr (under rated load)
Insulation resistance 1,000 MΩ min. (at 500 VDC)
Dielectric withstand voltage 2,000 VAC, 50/60 Hz for 1.0 min (1,000 VAC between contacts of same polarity)
Vibration resistance Destruction:10 to 55 Hz, 1.0 mm double amplitude
Malfunction:10 to 55 Hz, 1.0 mm double amplitude
Shock resistance Destruction:1,000 m/s 2 (approx. 100G)
Malfunction:200 m/s 2 (approx. 20G)
Ambient temperature Operating -55°C to 70°C (-67°F to 158°F) with no icing
Ambient humidity Operating 5% to 85% RH
*Prices subject to change without notice. We reserve the right to limit quantities.
-
Age
0+
-
Part No
MY4 AC110/120
-
Manufacturer
OMRON ELECTRONIC COMPONENTS
-
Stock No
JEQN-2671A
-
SKU No
266892
