Introduction
Congratulations on your purchase of our Contact/Non-Contact Tachometer, model MTP AT-8.
Careful use of this meter will provide years of reliable service.
1. Features
The digital tachometer provides fast and accurate contact and non-contact RPM and
surface speed measurements of rotating objects
Measurement types : Rotation Speed (RPM/rpm), Total Revolutions (REV), Frequency
(Hz), Surface Speed (m/min, in/min, ft/min, yd/min and Length (m, in, ft, yd)
Offers a wide measurement range and high resolution
Large easy to read LCD display with backlight
40 readings memory: 10 selectable MAX measurements, 10 selectable MIN
measurement, 10 selectable AVG measurements, 10 selectable DATA measurement

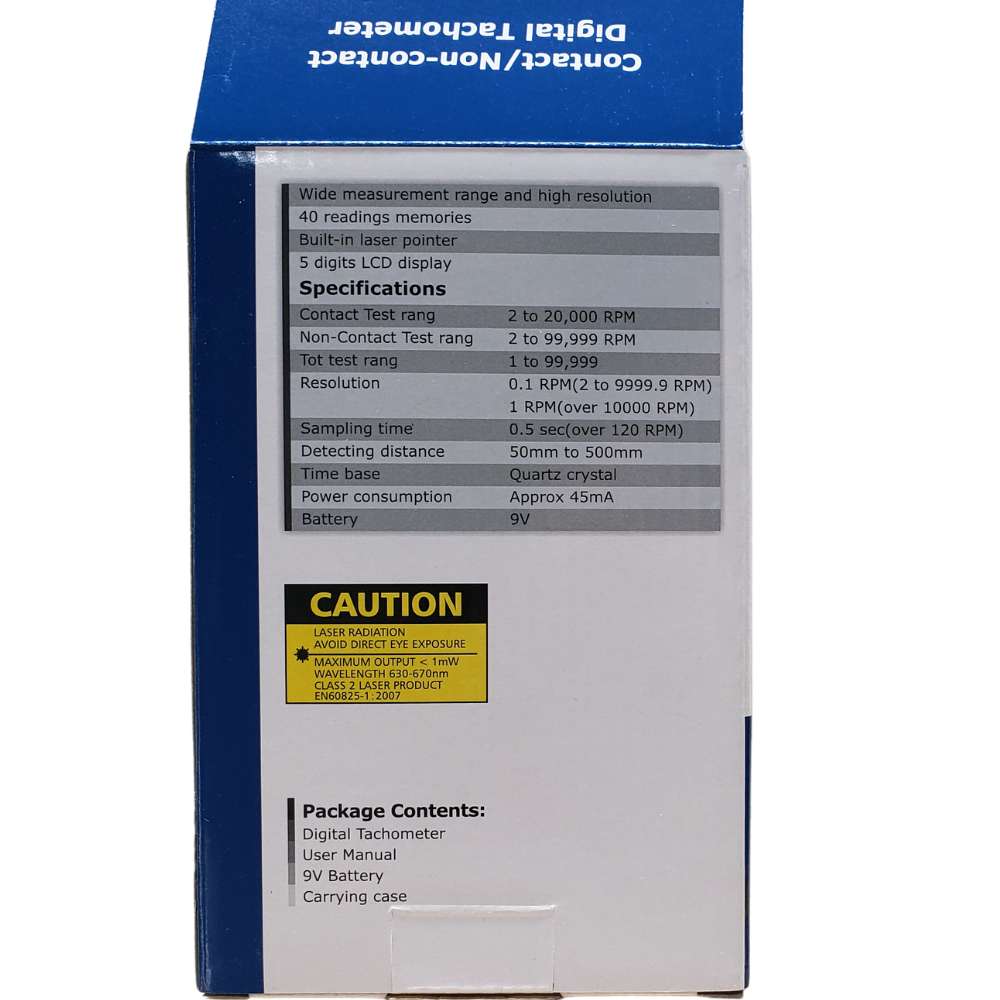

Specifications
Display:5 digits LCD display
Accuracy :(0.05% + 1 digit)
Contact Test Range :2 to 20,000 RPM
Non- Contact Test Range:2 to 99,999 RPM
Total Test Range :1 to 99,999
Resolution :0.1 RPM (2 to 9999,9 RPM), 1 RPM (over 10000 RPM)
Sampling Time :0.5 sec. (over 120 RPM)
Detecting Distance :50mm to 500mm.
Time Base :Quartz crystal
Power Consumption:Approx. 45mA
Power Supply:9V battery
Operation Temperature:0ºC to 50ºC (32 to 122ºF)
Weight:160g
Dimensions:160 x 60 x 42

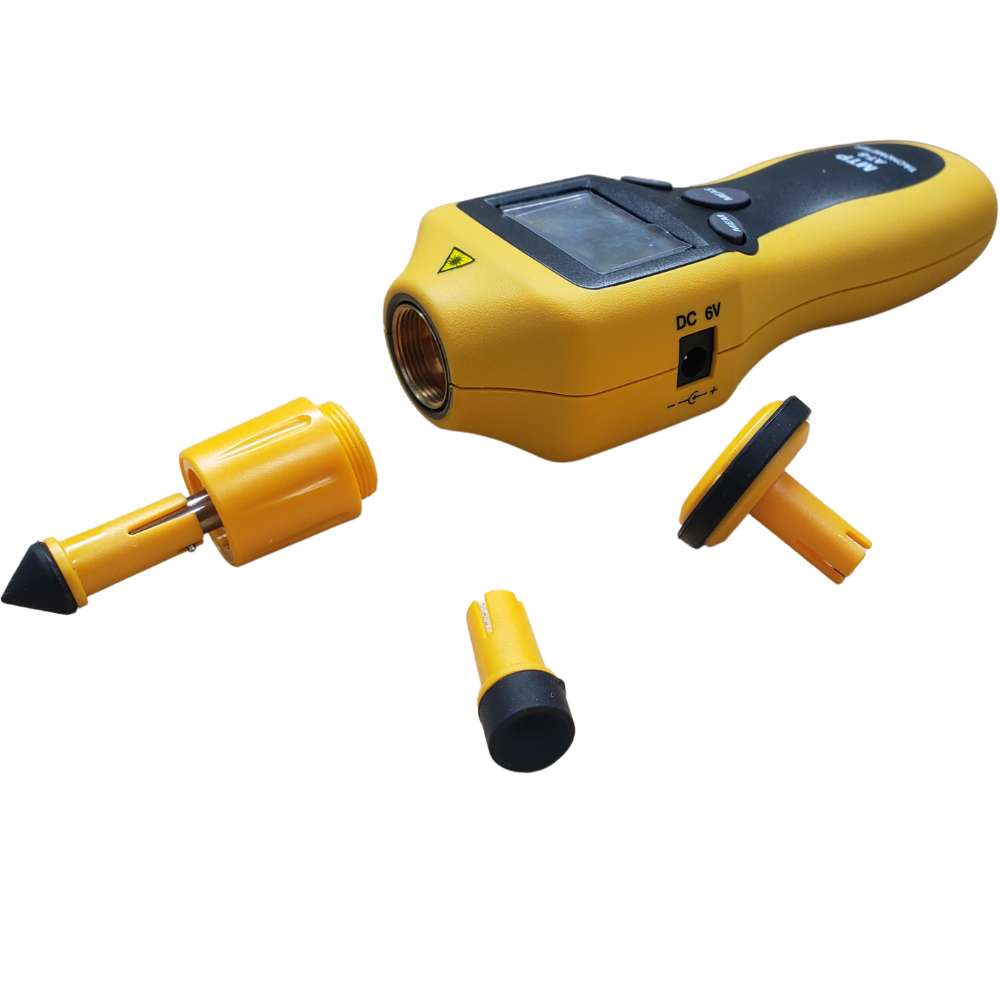

Accessories:9V battery, carrying case, contact adapter (funnel, cone, measuring wheel). x03 reflective strips, manual
