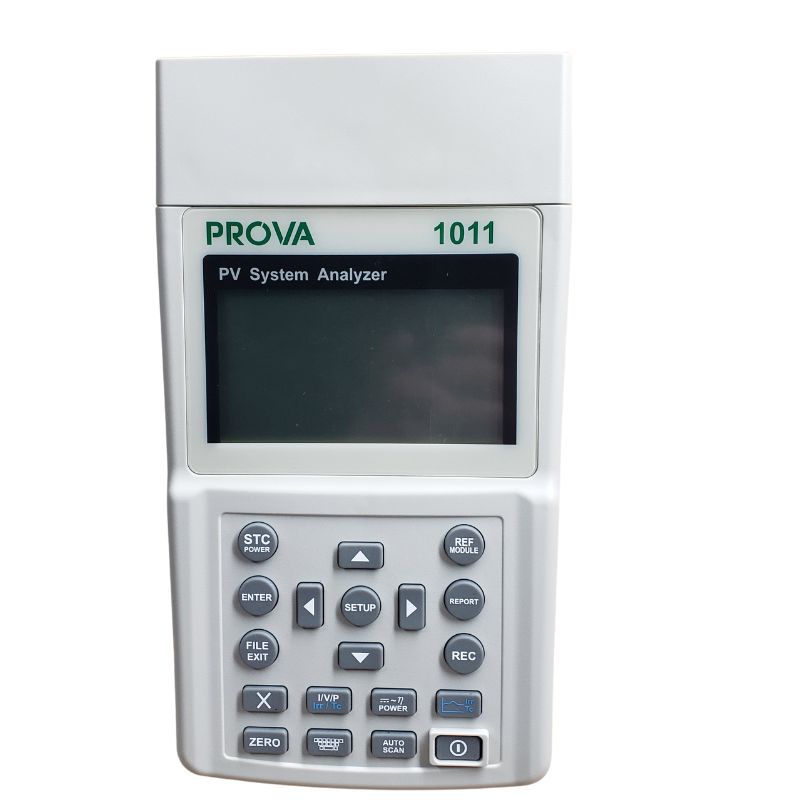

PV SYSTEM ANALYZER

*I-V curve test for solar system *Max. solar system power (Pmax) search by Auto-scan: 1000V, 12A (12000W capability) *The analyzer and the Remote Solar Detector is connected by Bluetooth wireless communication *Intelligent test logic with no personnel attendance required in the field *Max. voltage (Vpm) at Pmax; Max. current (Ipm) at Pmax *Voltage at open circuit (Voc); Current at short circuit (Isc) *Efficiency (%) calculation of solar system *Temperature measurement of solar panels *Irradiance measurement of sun light *Series resistance (Rs) calculation of solar panels *I-V curve with cursor to display each data point *With data logging/open function, the I-V curves of solar system can be analyzed/recorded for a period of time (e.g. 60 min.) *Conversion of I-V curve under OPC to data under standard test condition (STC) based upon IEC standard *Provide Operating Condition (OPC) and Standard Test Condition (STC) test reports for verification of solar panel performance (OK, or NO OK) *Users can set up the parameters of solar panels; users can set up the series numbers of solar panels *Irradiances & temperatures of solar panels can be continuously measured, monitored and recorded *Built-in calendar clock *Rechargeable lithium battery; AC power adaptor *Optical USB cable for PC *With OPTIONAL power clamps (SOLAR 15 DC Current Probe and SOLAR 21 AC Power Clamp), continuously measure/monitor/record the DC power output of solar system and the AC power output of inverter (1 phase or balanced 3 phases); calculate the efficiency of DC to AC power conversion and the efficiency of the max. output power

---

• Age

  0+

• Part No

  1011

• Manufacturer

  PROVA INSTRUMENTS INC.

• Stock No

  SQ21719

• SKU No

  263343
