4000 counts digital display
Auto ranging
Auto power off Overload protections
Safety input jacks Safety test leads
Safety: EN61010-1, CATIII 600V, CE approved
Dimensions: 165mm(H)×78mm(W)×42.5mm(D)
Weight: Approx. 285g
RPM: 600 - 4000, 4000 - 12000 ± 2.0%
Dwell Angle: 4, 5, 6, 8 cylinders ± 2.0%
Duty cycle: 0 - 90% > 100μs, < 100ms ± 2.0%
DC Volts: 400mV, 4V, 40V, 400V, 600V ± 1.0%
AC Volts:400mV, 4V, 40V, 400V, 600V ± 2.0%(50- 500Hz)
DC Current: 400μA, 4000μA, 40mA, 400mA, 10A ± 2.0%
AC Current: 400μA, 4000μA, 40mA, 400mA, 10A ±2.5% (50 - 500Hz)
Resistance: 400Ω, 4k, 40k, 400k, 4M, 40MΩ ± 1.5%
Frequency: 10 Hz- 400kHz ± 0.1%
Temperature: -20°C to 1000°C, -4°F to 1832°F ± 2.0%
K-Type thermocouple
Diode Test,Continuity Test,Data Hold
Resolution: 1RPM, 0.1mV, 0.1μA, 0.1Ω, 1Hz, 0.1°C, 0.1°F
-
Part No

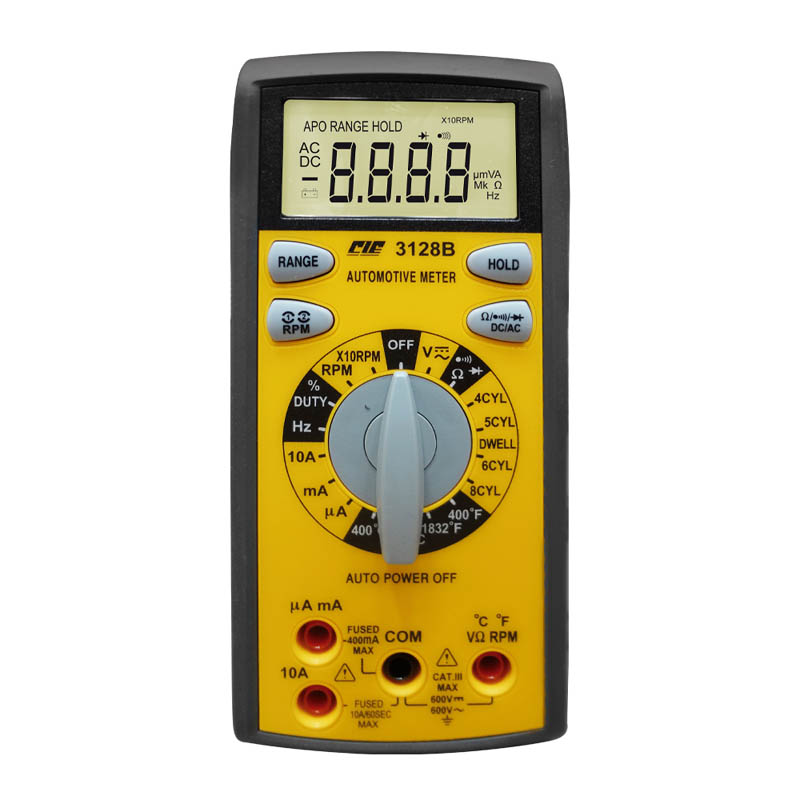

3128B
-
Manufacturer
-
Stock No
MJRV-486
-
SKU No
261617
