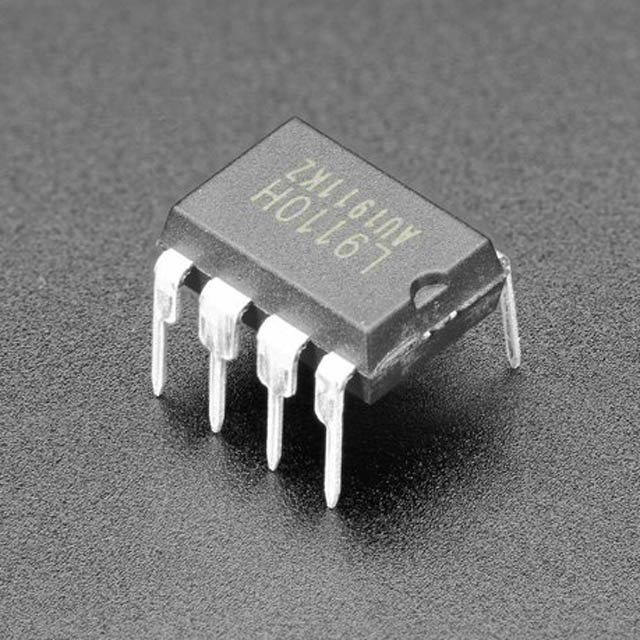

Run two solenoids or a single DC motor with up to 800mA per channel using the super-simple L9110H H-bridge driver. This bridge chip is an 8 DIP package so it's easy to fit onto any breadboard or perfboard.
Each chip contains one full H-bridge (two half H-bridges). That means you can drive 2 solenoids or a single DC motor bidirectionally. Just make sure they're good for under 800 mA since that's the limit of this chip. They do handle a peak of 1.5A but that's just for a short amount of time. Good for motor power voltages from 2.5V up to 12V!
This driver comes with built-in kick-back diodes internally so you don't have to worry about the inductive kick damaging your project or driver! Saves board space too!
You can PWM an input per driver so you can control motor speed and direction.
This chip doesn't have split logic/power pins, but it seems that you can use 3.3V logic level with higher voltages no problem.
*Prices subject to change without notice. We reserve the right to limit quantities.
-
Age
10+
-
Part No
4489
-
Manufacturer
-
Stock No
1813-ZA1
-
SKU No
260087
To purchase bulk quantities, Please contact our Sales Department
(+1-416-494-8999) or email shop@sayal.com
4489 Document 1
