- TrueRMS - Higher accuracy on AC circuits
- LOW Z - Eliminates false readings from 'ghost voltage'
- MULTI FUNCTION - 11 measuring functions, plus MAX/MIN
- ADDED CONVENIENCE – Powerful built-in work light

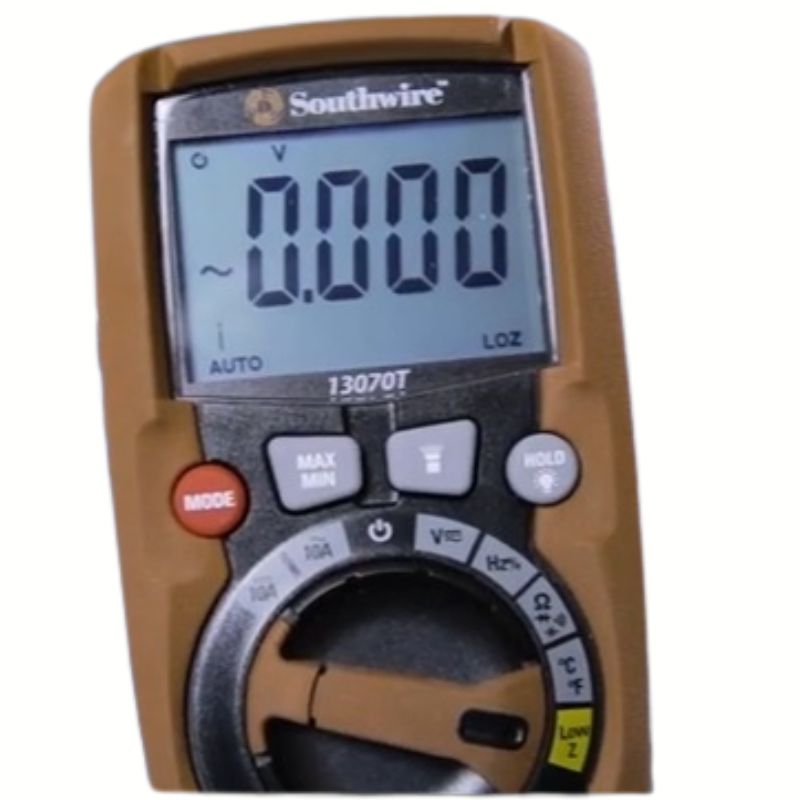

- BACKLIT DISPLAY – 4000 count with bar graph
- IP67 WATERPROOF/DUST TIGHT - For use in demanding environments (dry the meter thoroughly before use)
- SAFETY RATING - CAT lll 600V, UL listed
| FUNCTION | RANGE | RESOLUTION | ACCURACY
±(% OF READING DIGITS) |
AC Voltage
(50 to 60Hz) | 4.000V | 1mV | ±(1.5% 10) |
| 40.00V | 10mV |
| 400.0V | 0.1V |
| 600V | 1V |
| Low Z (AC Voltage) | 4.000V | 1mV | ±(1.5% 10 digits) |
| 40.00V | 10mV |
| 300.0V | 0.1V |
| DC VOLTAGE | 400.0mV | 0.1mV | ±(0.8% 8) |
| 4.000V | 1mV | ±(1.2% 2) |
| 40.00V | 10mV |
| 400.0V | 0.1V |
| 600V | 1V | ±(1.2% 5) |
| Low Z (DC Voltage) | 400.0mV | 0.1mV | ±(0.8% 8) |
| 4.000V | 1mV | ±(1.2% 2) |
| 40.00V | 10mV |
| 300.0V | 0.1V |
AC Current
(50 to 60Hz) | 4.000A | 1mA | ±(3.0% 5) |
| 10.00A | 10mA |
| DC CURRENT | 4.000A | 1mA | ±(2.5% 5) |
| 10.00A | 10mA |
| RESISTANCE | 400.0Ω | 0.1Ω | ±(1.2% 4) |
| 4.000kΩ | 1Ω |
| 40.00kΩ | 10Ω |
| 400.0kΩ | 100Ω |
| 4.000MΩ | 1kΩ | ±(2.0% 20) |
| 40.00MΩ | 10kΩ | ±(5.0% 20) |
| CONTINUITY | Audible beeper if resistance is approx. 40Ω or less |
| DIODE TEST | Test current 1.5mA max., open circuit voltage 3V typical |
| CAPACITANCE | 40.00nF | 10pF | ±(5.0% 50) |
| 400.0nF | 100pF | ±(3.0% 5) |
| 4.000µF | 0.001µF |
| 40.00µF | 0.01µF |
| 400.0µF | 0.1µF | ±(5.0% 10) |
| 4000µF | 1µF |
| FREQUENCY | 9.999Hz | 0.001Hz | ±(1.5% 5) |
| 99.99Hz | 0.01Hz |
| 999.9Hz | 0.1Hz | ±(1.2% 3) |
| 9.999kHz | 1Hz |
| 99.99kHz | 10Hz |
| 999.9kHz | 100Hz |
| 9.999MHz | 1kHz | ±(1.5% 14) |
| DUTY CYCLE | 0.1 to 99.9% | 0.10% | ±(1.2% 2) |
| TEMPERATURE | -4°F to 1400°F | 0.1°F | ±(3.0% 9°F) |
| -20°C to 760°C | 0.1°C | ±(3.0% 5°C) |
4000 count backlit LCD
| GENERAL SPECIFICATIONS |
| SAFETY RATING | CAT Ill 600V, UL listed |
| ENCLOSURE | IP67 waterproof and dust proof |
| AC RESPONSE | True RMS |
| AUTO POWER OFF | After approx. 15 minutes of inactivity |
| DISPLAY |
|
| MODEL # | STOCK # | UPC # | DESCRIPTION |

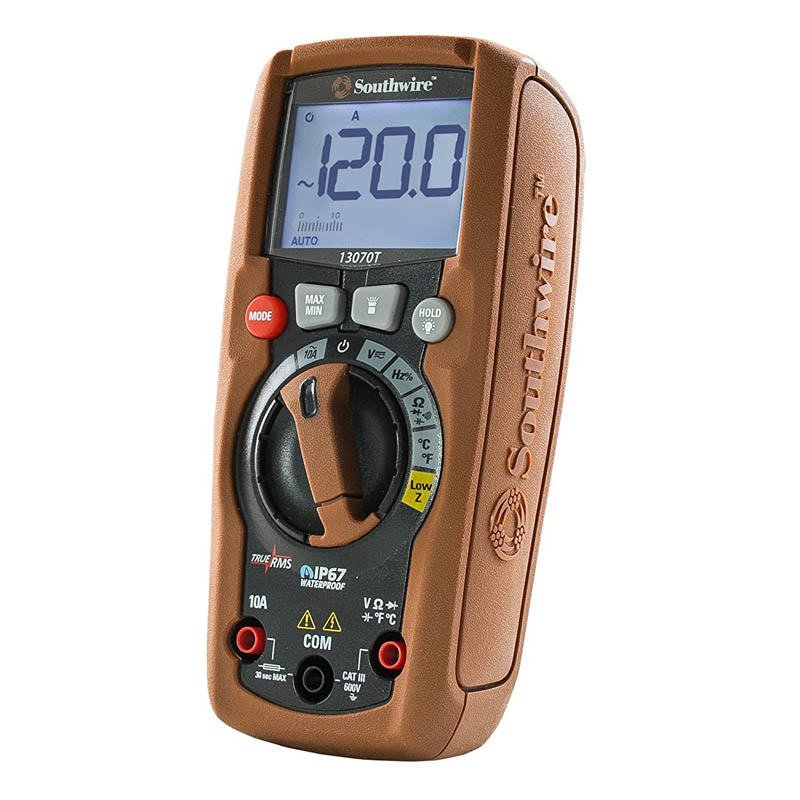

| 13070T | 63-01-50 | 032886963285 | "ResidentialPRO™ TRUE RMS CAT III MULTIMETER" |
*Prices subject to change without notice. We reserve the right to limit quantities.
-
Part No
13070T
-
Manufacturer
SOUTHWIRE COMPANY
-
Stock No
MJJD-448
-
SKU No
257855
