- AUTO-SELECTING - Automatically selects AC or DC voltage
- AUTO HOLD FUNCTION - For quick touch and hold readings
- TrueRMS - Higher accuracy on AC circuits
- EASY TO READ - 4000 count backlit display
- ADDED CONVENIENCE - Built-in non-contact AC voltage detector and powerful work light

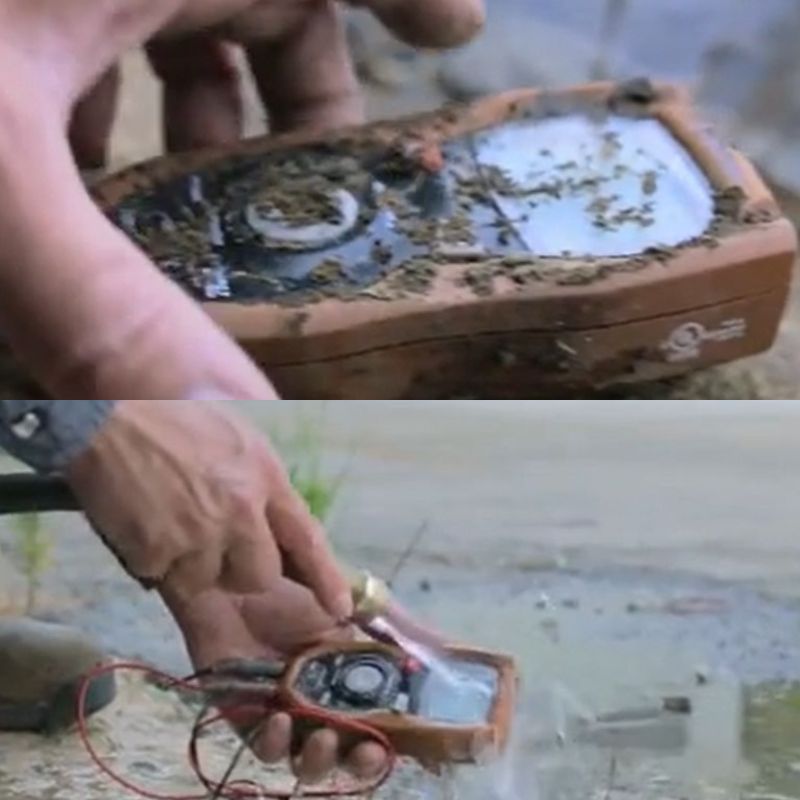

- IP67 WATERPROOF/DUST TIGHT – For use in demanding environments (dry meter thoroughly before use)
- SAFETY RATING - CAT IV 600V, UL listed
| FUNCTION | RANGE | RESOLUTION | ACCURACY
±(% OF READING DIGITS) |
AC VOLTAGE
(50 to 60HZ) | 400.0V | 0.1V | ±(1.0% 5) |
| 600V | 1V |
| DC VOLTAGE | 400.0V | 0.1V | ±(1.0% 5) |
| 600V | 1V |
| RESISTANCE | 400.0Ω | 0.1Ω | ±(1.0% 10) (1) |
| 4.000kΩ | 1Ω | ±(1.0% 5) |
| 40.00kΩ | 10Ω |
| 400.0kΩ | 100Ω | ±(1.5% 10) |
| CONTINUITY | Audible beeper if resistance is approx. 50Ω or less |
32°F to 122°F (0°C to 50°C)
| GENERAL SPECIFICATIONS |
| SAFETY RATING | CAT IV 600V, UL listed |
| ENCLOSURE | IP67 waterproof and dust proof |
| AC RESPONSE | True RMS |
| AUTO POWER OFF | After approx. 15 minutes of inactivity |
| DISPLAY | 4000 count backlit LCD |
| BATTERIES | Two AAA 1.5V batteries |
| OPERATING TEMPERATURE |
|
| MODEL # | STOCK # | UPC # | DESCRIPTION |
| 16030A | 63-01-91 | 032886963407 | AUTOSELECTING CAT IV MULTIMETER |
