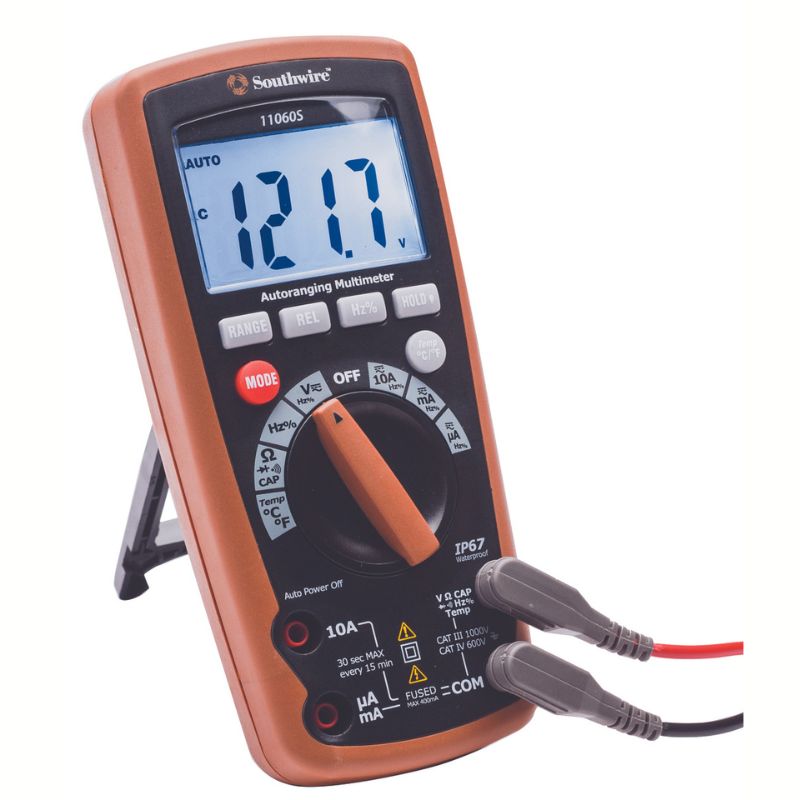

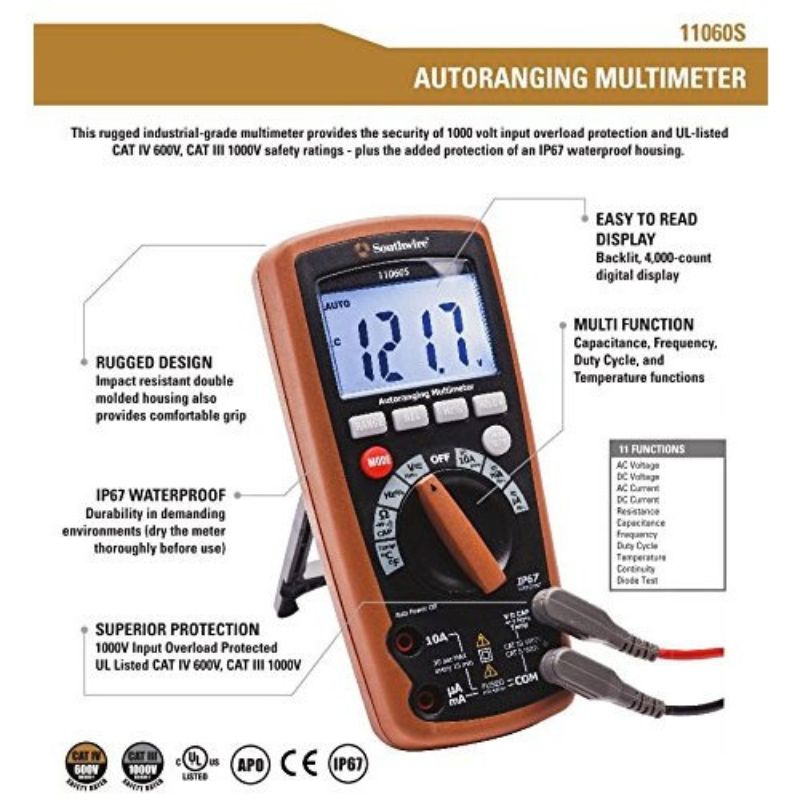

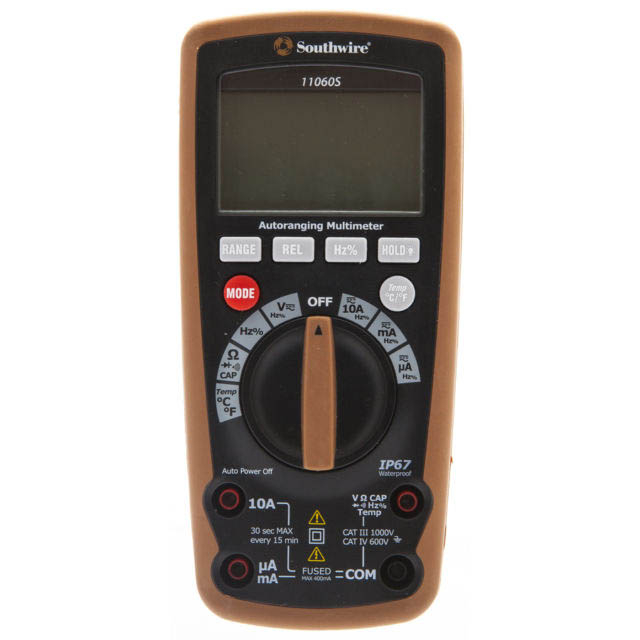

Auto-Ranging Multimeter IP67 CAT IV
Rugged industrial grade multimeter offers 1000 volt input protection,
IP67 waterproof and dust proof housing, and a CAT IV safety rating.
Features:- 11 Functions including: Capacitance, Frequency, Duty Cycle, and Temperature
- IP67 Dust Proof and Waterproof for demanding environments
- Easy to read backlit, 4,000-count display
- Magnetic hanging strap for convenient hands free operation
- CAT IV 600V, CAT III 1,000V, UL Listed
Includes:
- 10060S Multimeter
- Test leads
- Type K temperature probe with banana plug adapter
- Magnetic hanging strap
- Carrying case
- 9 volt battery

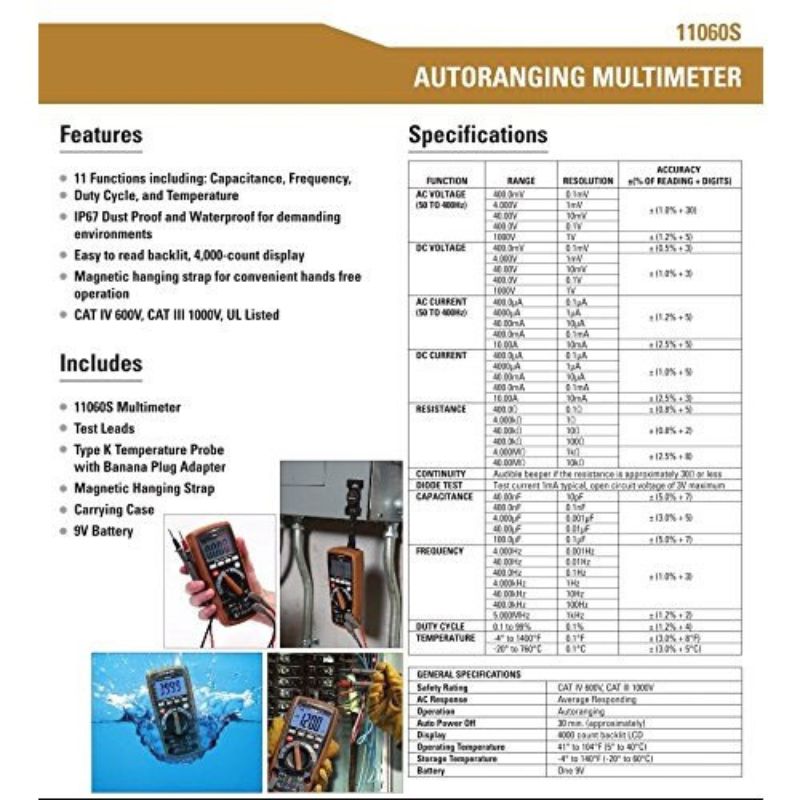

| Feature | | Range | | Max. Resolution | | Max. Accuracy (% of Reading) | |
| AC Voltage | | 1000V | | 0.1mV | | ±1.0% | |
| DC Voltage | | 1000V | | 0.1mV | | ±0.5% | |
| AC Current | | 10A | | 0.1µA | | ±1.2% | |
| DC Current | | 10A | | 0.1µA | | ±1.0% | |
| Resistance | | 40MΩ | | 0.1 ohm | | ±0.8% | |
| Capacitance | | 100µF | | 10pF | | ±3.0% | |
| Frequency | | 5MHz | | 0.001Hz | | ±1.0% | |
| Duty Cycle | | 99.9% | | 0.1% | | ±1.2% | |
| Temperature | | -4 to 1400°F (-20 to 760°C) | | 0.1° | | ±3.0% | |
| Continuity | | Audible threshold approx. 30 ohms | |
| Diode Test | | Yes | |
| Dimensions | | 6.7 x 3.11 x 1.97 in. | |
| Weight | | 1.16lb | |
*Prices subject to change without notice. We reserve the right to limit quantities.
-
Part No
11060S
-
Manufacturer
SOUTHWIRE COMPANY
-
Stock No
MJRD-445A
-
SKU No
253143
Limited Stock Available To purchase, Please contact our Sales Department
(+1-416-494-8999) or email shop@sayal.com
