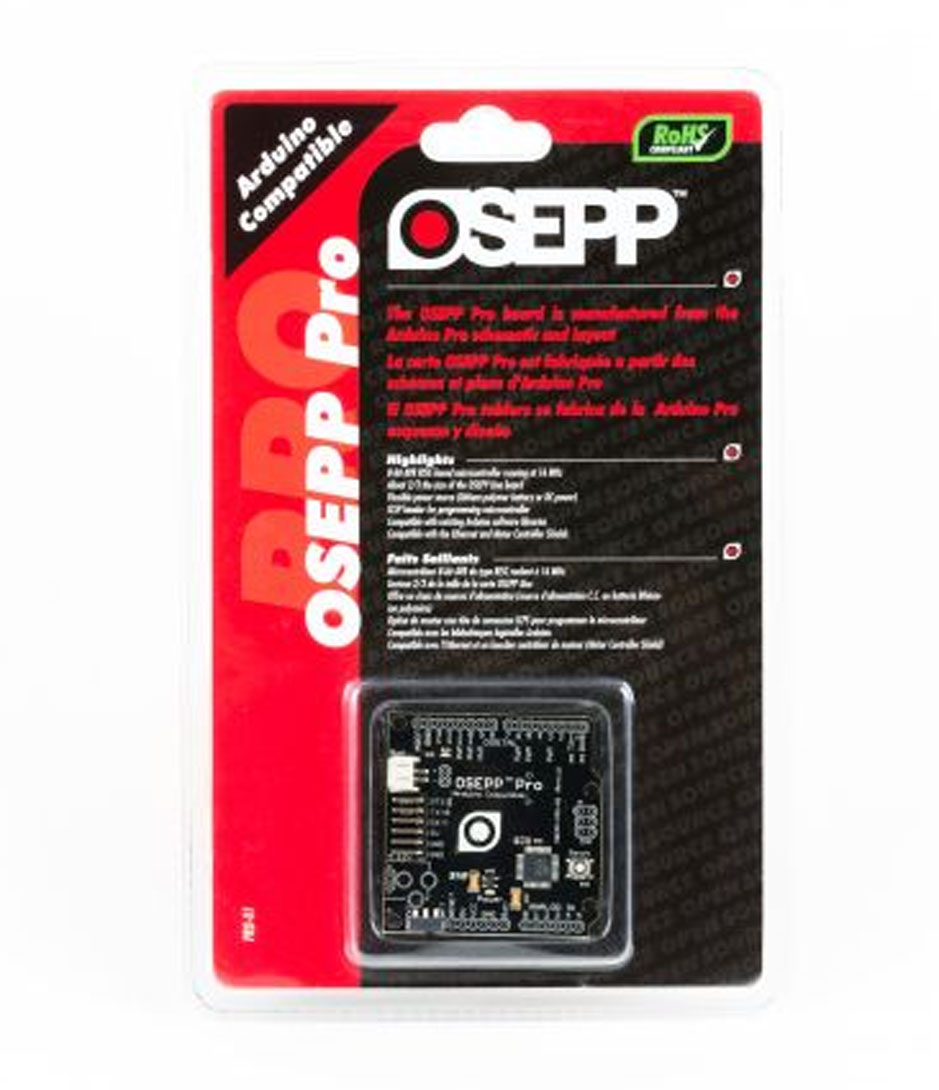

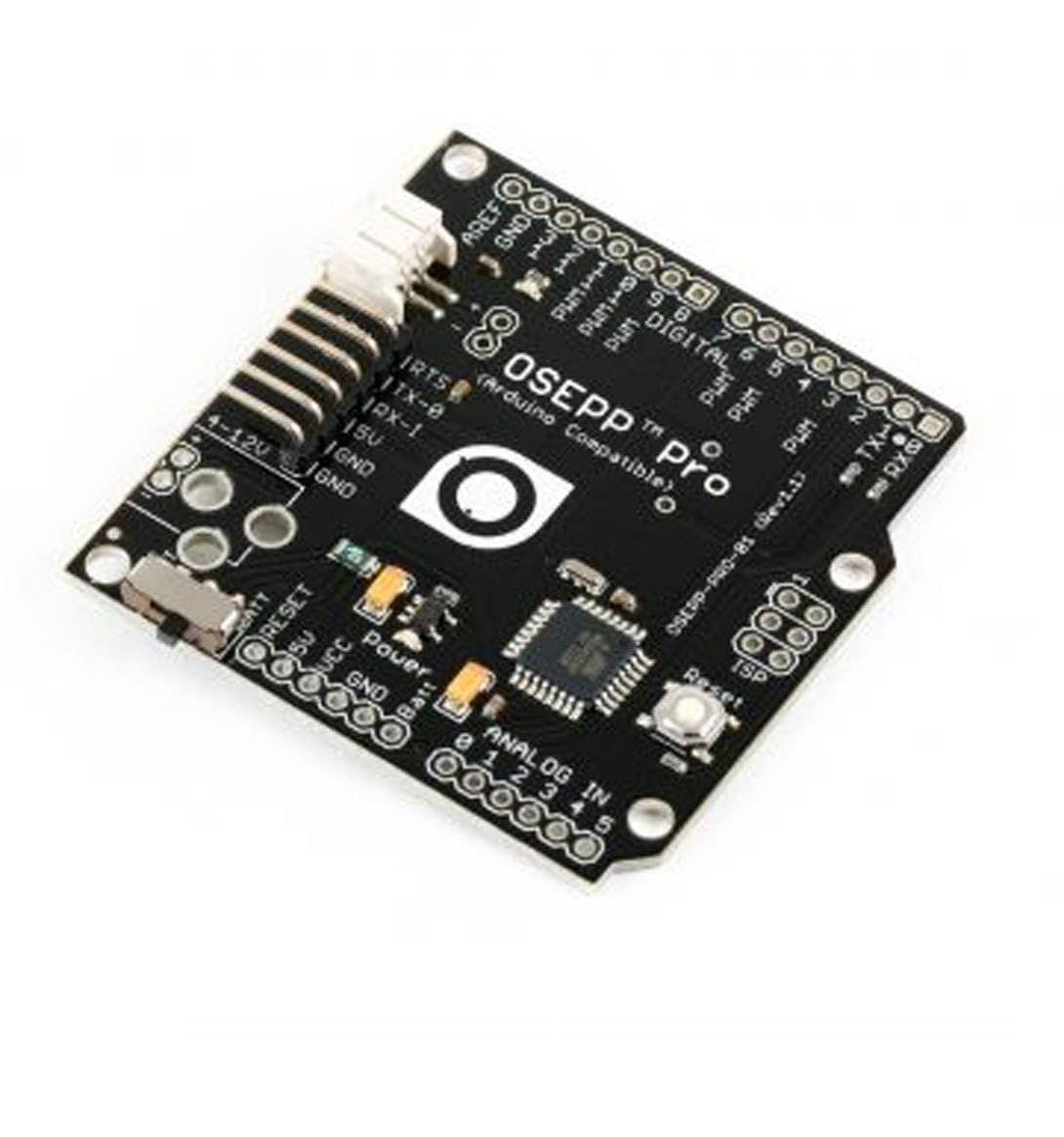

OSEPP PRO BOARD ATMEGA328P BASED 16MHZ 32KB FLASH 2KB SRAM 5V I/P - Programmable assembled

8-bit AVR RISC-based microcontroller running at 16 MHz About 2/3 the size of the OSEPP™ Uno board Flexible power source (lithium polymer battery or DC power) ICSP header for programming microcontroller Compatible with existing Arduino software libraries Compatible with the Ethernet and Motor Controller Shields Features: The ATmega328P comes with the Arduino bootloader preloaded. Should you wish to update and/or replace the bootloader, there are ICSP (In-Circuit Serial Programming) pin-outs that can be used in combination with a header (sold separately) for the ATmega328P. The board comes with a resettable polyfuse on the power source. The fuse will trip when the current exceeds 500 mA on the input.

---

• Age

  10+

• Part No

  PRO-01

• Manufacturer

  OSEPP

• Stock No

  1811-PF1

• SKU No

  249561

Limited Stock Available To purchase, Please contact our Sales Department
(+1-416-494-8999) or email shop@sayal.com
