Stepper motor driver 5v uln2003 with stepper motor 5vdc
STEPPER MOTOR DRIVER 5V ULN2003 WITH STEPPER MOTOR 5VDC
Image is for illustrative purposes only. Please refer to product description.

STEPPER MOTOR DRIVER 5V ULN2003 WITH STEPPER MOTOR 5VDC

Part#:WPI401 Stock#: 1814-LC1 SKU: 248126
$9.95 CAD
Availability: 15 in stock
Age: 10+
Stock and Aisle Location
# Store Qty Aisle
Burlington2
Cambridge2
Mississauga3
Scarborough4
Vaughan3
Warehouse 1

Related Items
Warehouse Only
MOTOR STEPPER 1.8DEG/STEP W/WIRE
Part No: KP35FM2-035
Stock No: MOTOR 125

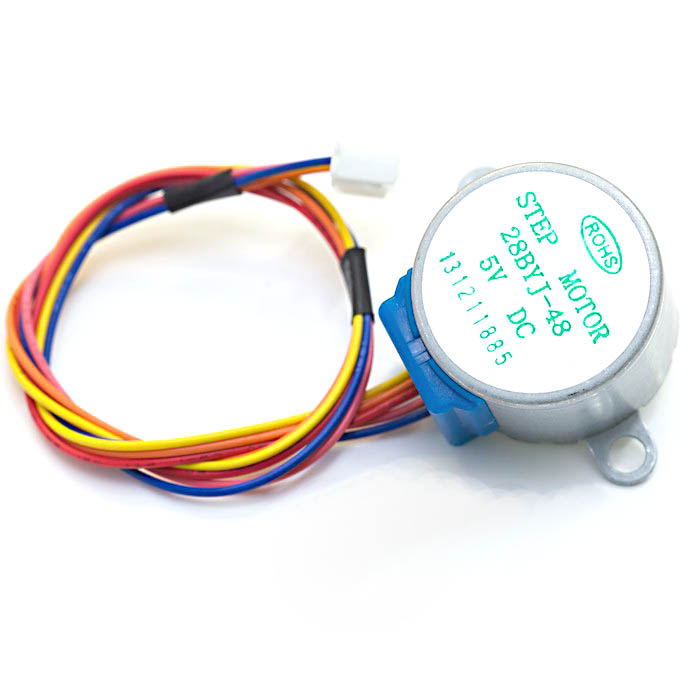

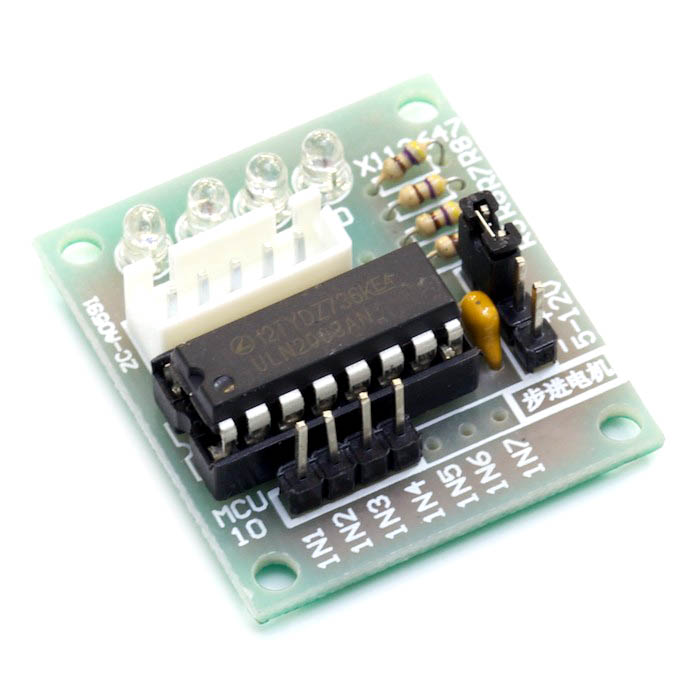

A small and versatile motor and driver set. This 5 VOLTS DC stepper motor controlled by the ULN2003 driver can be used with any Arduino® or compatible boards via jumper leads. Four-phase LED indicates the status of the stepper motor.

Features

  • with LED step indicators
  • included: 5 Volts DC stepper motor
  • ULN2003 controller module
  • cable

Specifications

  • operating voltage: 5 Volts DC
  • steps / revolution: 64
  • controller: ULN2003
  • motor diameter: 28 mm
  • reduction ratio: 1:64
  • number of phases: 4
  • dimensions: 35 x 32 x 10 mm


*Prices subject to change without notice. We reserve the right to limit quantities.
  • Age
    10+
  • Part No
    WPI401
  • Manufacturer
    Velleman
  • Stock No
    1814-LC1
  • SKU No
    248126

To purchase bulk quantities, Please contact our Sales Department
(+1-416-494-8999) or email shop@sayal.com
