The device includes an on-chip Hall voltage generator for magnetic sensing, an amplifier that amplifies the Hall voltage, a Schmitt trigger to provide switching hysteresis for noise rejection, and an open-collector output.
Features:
- Voltage: 5 VDC
- connection:
- 3 pins, +(middle pin) ground and S (data out)
- output (S): Schmitt Trigger, Active Low
- Activation: 30 Gauss
- Deactivation: 10 Gauss
- LED indicator: ON when activated
- dimensions: 0.98" x 0.59" (25 x 15 mm)
- weight: 0.07 oz. (2 g)
*Prices subject to change without notice. We reserve the right to limit quantities.
-

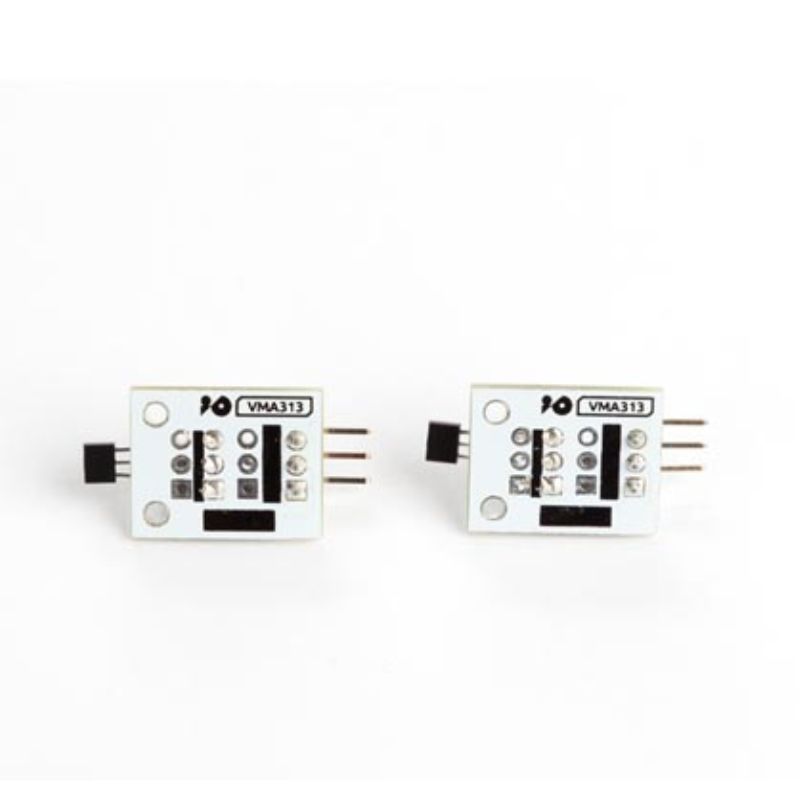

Part No
VMA313
-
Manufacturer
Velleman
-
Stock No
1814-SB1-2
-
SKU No
248124
To purchase bulk quantities, Please contact our Sales Department
(+1-416-494-8999) or email shop@sayal.com
Velleman VMA313 Document 1
