Battery charger lipo lithium polymer 3.7v
BATTERY CHARGER LIPO LITHIUM POLYMER 3.7V
Image is for illustrative purposes only. Please refer to product description.

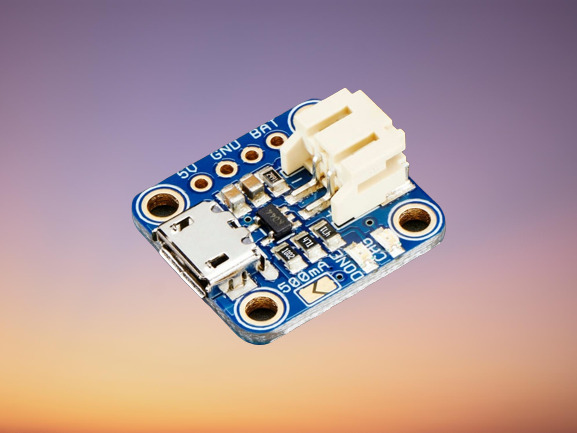

BATTERY CHARGER LIPO LITHIUM POLYMER 3.7V - Fully assembled

Part#:1904 Stock#: 1817-CA1 SKU: 244553
$14.95 CAD
Availability: 20 in stock
Age: 12+
Stock and Aisle Location
# Store Qty Aisle
Burlington1
Cambridge2
Markham2
Mississauga3
Scarborough3
Vaughan1
Warehouse 8

Related Items

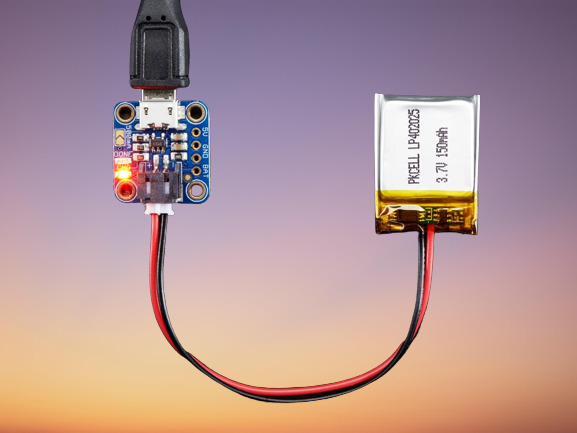

This little lipo charger is so small and easy to use you can keep it on your desk or mount it easily into any project! Simply plug it via any MicroUSB cable into a USB port and a 3.7V/4.2V lithium polymer or lithium ion rechargeable battery into the JST plug on the other end. There are two LEDs - one red and one green. While charging, the red LED is lit. When the battery is fully charged and ready for use, the green LED turns on. Seriously, it could not get more easy.

Charging is performed in three stages: first a preconditioning charge, then a constant-current fast charge and finally a constant-voltage trickle charge to keep the battery topped-up. The charge current is 100mA by default, so it will work with any size battery and USB port. If you want you can easily change it over to 500mA mode by soldering closed the jumper on the front, for when you'll only be charging batteries with 500mAh size or larger.

  • Comes assembled and tested with a free bonus JST cable!

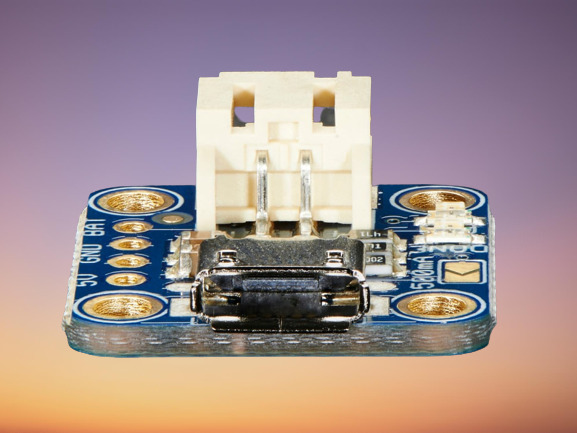

  • 5V input via Micro-B USB connector
  • For charging single Lithium Ion/Lithium Polymer 3.7/4.2v batteries (not for older 3.6/4.1v cells)
  • 100mA charge current, adjustable to 500mA by soldering a jumper closed

NOTE: Battery not included.

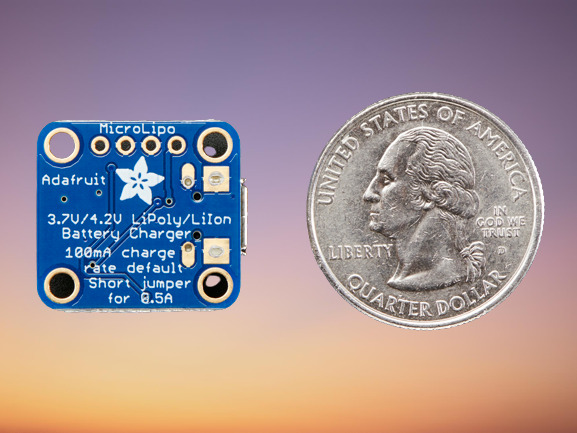

  • Dimensions: 21mm x 19mm x 2mm / 0.8" x 0.75" x 0.08"
  • We are currently shipping with a half thickness (0.8mm) PCB
  • Height w/ JST: 7mm x 0.3"
  • Weight: 2g
*Prices subject to change without notice. We reserve the right to limit quantities.
  • Age
    12+
  • Part No
    1904
  • Manufacturer
    ADAFRUIT INDUSTRIES
  • Stock No
    1817-CA1
  • SKU No
    244553
