| Specifications | Range | Best Accuracy |

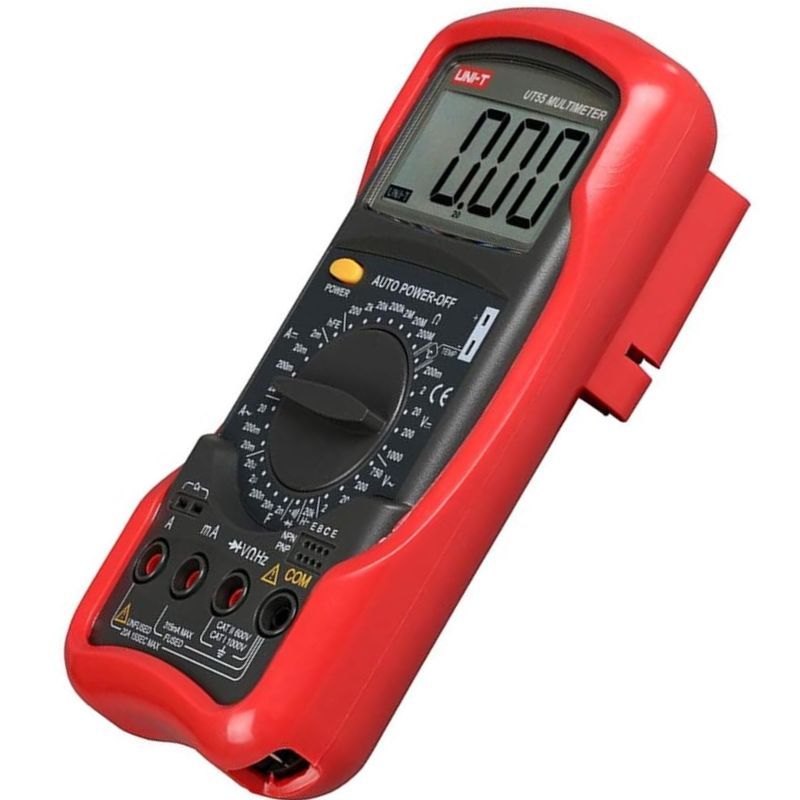

| Model | | UT55 |
| DC Voltage (V) | 200mV/2V/20V/200V/1000V | ±(0.5%+1) |
| DC Current (A) | 2mA/20mA/200mA/20A | ±(0.8%+1) |
| AC Voltage (V) | 2V/20V/200V/750V | ±(0.8%+3) |
| AC Current (A) | 20mA/200mA/20A | ±(1%+3) |
| Resistance (Ω) | 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ/200MΩ | ±(0.8%+1) |
| Capacitance (F) | 2nF/20nF/200nF/2μF/20μF | ±(4%+3) |
| Frequency (Hz) | 2kHz/20kHz | ±(1.5%+5) |
| 20kHz | ±(1.5%+5) |
| Temperature (°C) | -20℃～1000℃ | ±(1%+3) |
| Features |
| Transistor | | √ |
| Diode | | √ |
| Continuity Buzzer | | √ |
| Sleep Mode | | √ |
| Low Battery Display | | √ |
| Input Impedance for DC Voltage Measurement | 10MΩ | √ |
| Max. Display | 1999 | √ |
| General Characteristic |
| Power | 9V Battery (6F22) |
| LCD Size | 65mm×33mm |
| Product Colour | Red and Grey |
| Product Net Weight | 580g (including holster)） |
| Product Size | 190mm×88mm×34mm |

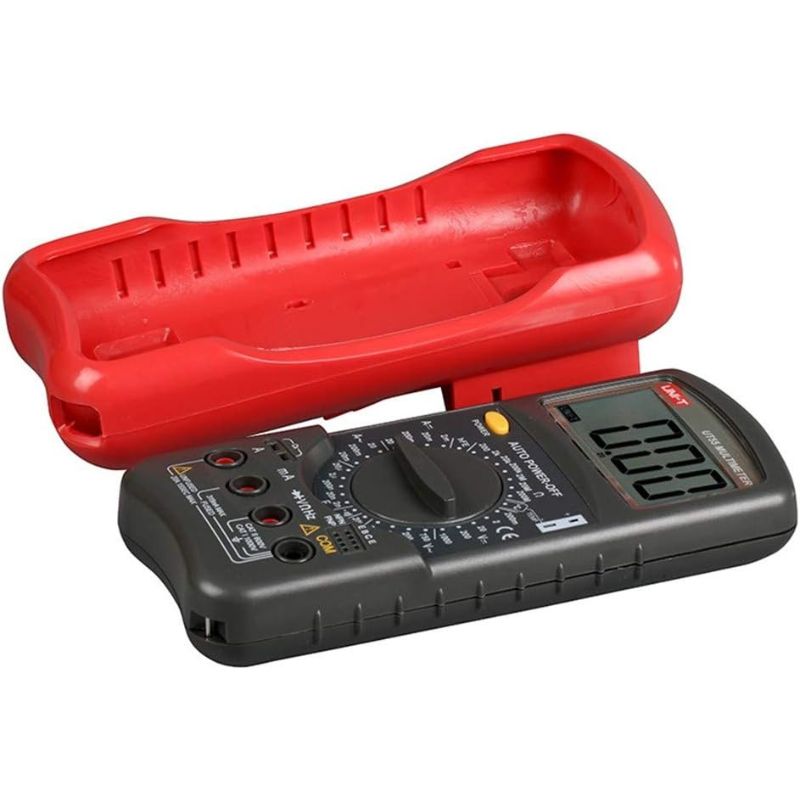

| Standard Accessories | Test Lead, Battery, Holster,Point type temperature probe |
| Standard Packing | Gift Box, English Manual |
| Standard Quantity Per Carton | 20 Pcs |
| Standard Carton Measurement | 535mm×362mm×385mm |
| Standard Carton Gross Weight | UT54-20.5kg，UT55-17.4kg |
| Optional Accessories* | Clip-On Test Lead Light (UT-TL), Built-In Test Lead Light (UT-L1), Built-In Test Lead Light Plus (UT-L2) |
Product Manual (en)*Prices subject to change without notice. We reserve the right to limit quantities.
-
Part No
UT55
-
Manufacturer
UNI-TREND TECHNOLOGY LTD.
-
Stock No
MJJP-881A
-
SKU No
238119
