TELEPHONE LINE TESTER

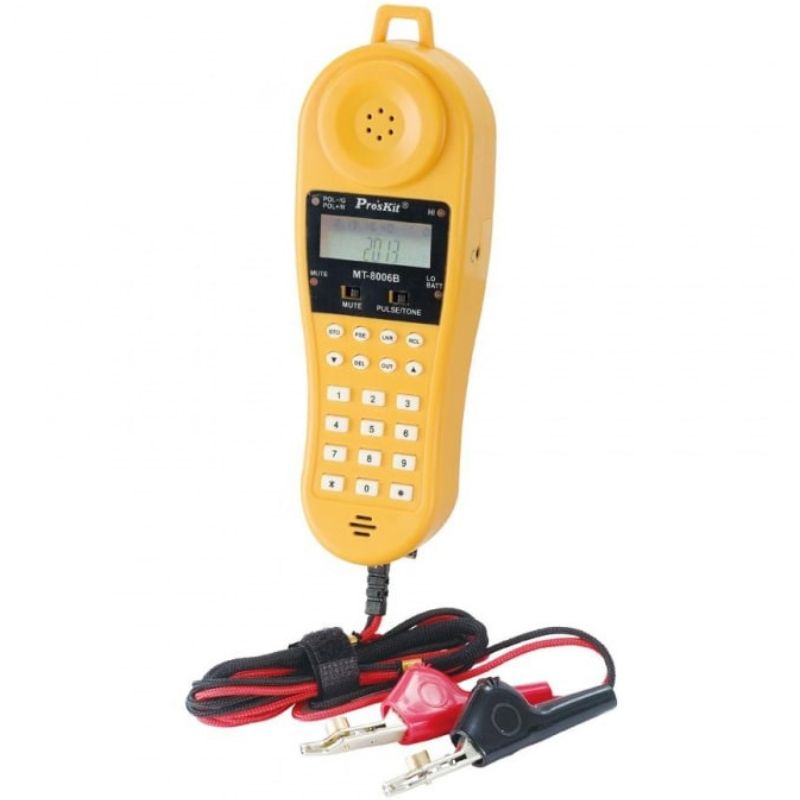

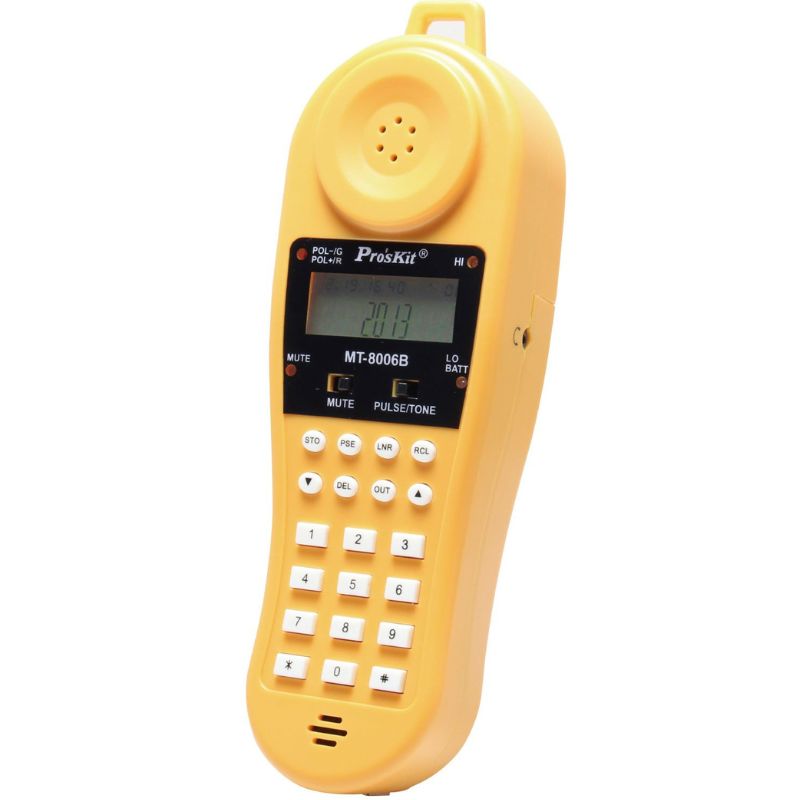

Eclipse MT-8006B Data Diver The Eclipse MT-8006B Data Diver can identify the telephone line polarity easily. Smart power saving enables battery life up to 6 months. Eclipse MT-8006B Data Diver is supplied with the headset provides convenient hands-free function. Loop limit 2 KΩ maximum at 48 Vdc (nominal 20 mA minimum loop current) DC resistance Talk Mode 300Ω typical Monitor impedance >39 kΩ nominal at 1 KHz Rotary dial output Pulsing rate 10 pps+0.8 pps Percent break 60/40%±2% Inter digit interval 1000 ms typical Leakage during Break >130 KΩ DTMF output Tone frequency error ±1.5% maximum Tone level -8±2 dBm combined (typical) High versus low tone 4 dB maximum Memory dialing Memory capacity 12 memories Digit capacity 16 digits per memory PBX pause duration 1~3.6 seconds Power source 4pcs 1.5 V AAA batteries (not included)

---

• Age

  0+

• Part No

  MT-8006B

• Manufacturer

  PROKITS INDUSTRIES CO. LTD.

• Stock No

  AHSG-313

• SKU No

  234720
