GM2/GM8 Gear Motor Bracket, Laser-Cut Steel
The provided mounting holes in the GM2/GM8 gear motors are a convenient
way to mount these to your project, but sometimes you just need a
different way to mount them.

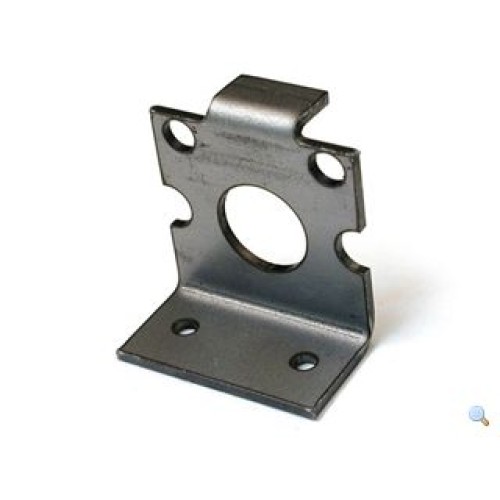

These precision laser-cut steel brackets match the features on the
gear motor, and securely clamp them down to your project.
Use any #4-sized screw or nut/bolt for assembly, but use special #4x1/2" screw designed for threading plastic to mount these to the chassis.
This screw also does a great job going into the steel bracket!
Note:
We've discovered our latest batch of GM2 motors were molded a
bit fatter around the tab that the motor-retainer screws go into.
This interferes with the little side-notches when you install it,
so you have make the side-notches a wee bit deeper with a file.
Or if you're feeling dangerous, you can use a small drill bit and
"ride" it down into the notch a bit.
This is Of course totally the wrong way to use a drill bit,
but sometimes you got to use the tools you have!
*Prices subject to change without notice. We reserve the right to limit quantities.
-
Age
10+
-
Part No
GMB28
-
Manufacturer
SOLARBOTICS LTD.
-
Stock No
2669-AA2-2
-
SKU No
224091
To purchase bulk quantities, Please contact our Sales Department
(+1-416-494-8999) or email shop@sayal.com
