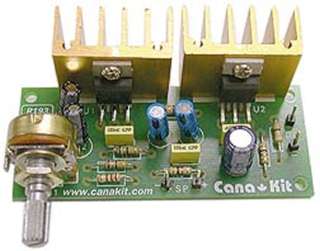

This is a PREASSEMBLED, compact, yet powerful audio amplifier using two TDA2003 monolithic Integrated Circuits connected in bridged configuration to achieve more output power at 12V DC supply. It can deliver more than 20W of music power into a 4-Ohm speaker and is ideal for any kind of audio amplification application.
Supply voltage: 12 to 18V DC / 2A
Based on two TDA2003 Integrated Circuits
Input sensitivity: 100mV / 47K Ohm
Output power using 18V DC supply:
Music power: > 22W / 4 Ohm
RMS power: 16W / 4 Ohm or 12W / 8 Ohm
Frequency response: 30Hz to 20KHz (-3dB)
Includes two gold-anodized heat sinks
Includes volume control
*Prices subject to change without notice. We reserve the right to limit quantities.
-
Age
10+
-
Part No
UK193
-
Manufacturer
Circuit Test
-
Stock No
2015-EF3
-
SKU No
196304
Limited Stock Available To purchase, Please contact our Sales Department
(+1-416-494-8999) or email shop@sayal.com
