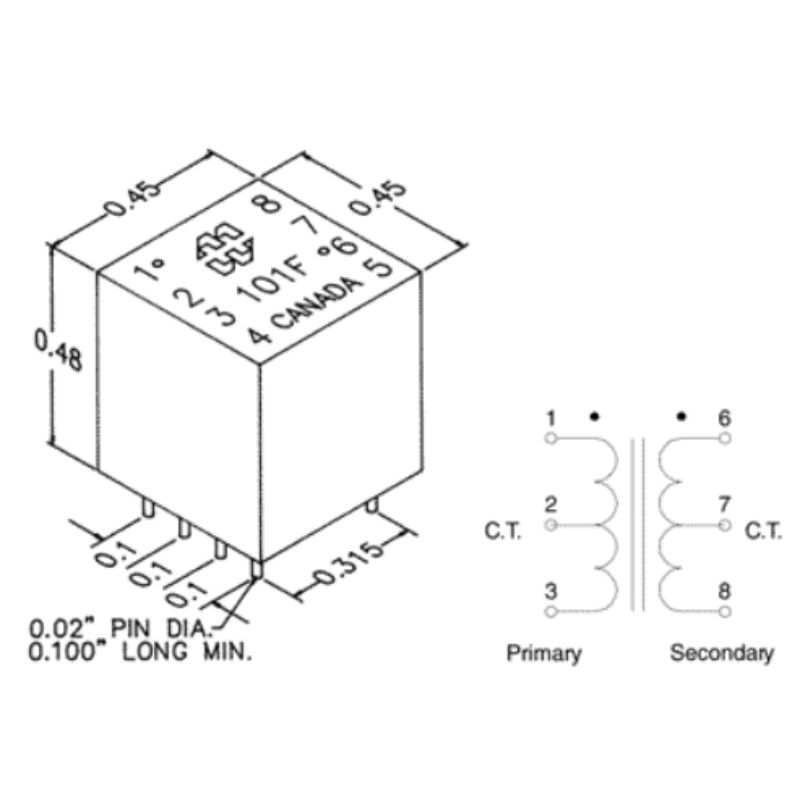

TXFR AUDIO 600RCT/600RCT EPOXY 6PINS

• Pin type, miniature size, P.C. board mount, net weight of only 0.1 oz.
• Rugged potted construction produces a completely sealed unit withstanding severe
• environmental conditions.
• Secondary may be used as primary and primary as secondary.
• Power level: Minimum frequency range: 300 Hz. to 100 Khz. +/- 0.5 db @ 100 mw
• Frequency range @ +10 dbm is 200 Hz. to 100 Khz. +/- 0.5 db
• Frequency range @ +15 dbm is 200 Hz. to 100 Khz. +/- 0.5 db
• Frequency range @ +20 dbm is 300 Hz. to 100 Khz. +/- 0.5 db
• Frequency measurements with no D.C. current saturation.

• Part No

  101F

• Manufacturer

  HAMMOND MANUFACTURING LTD.

• Stock No

  JRSE-6702-1

• SKU No

  193105
