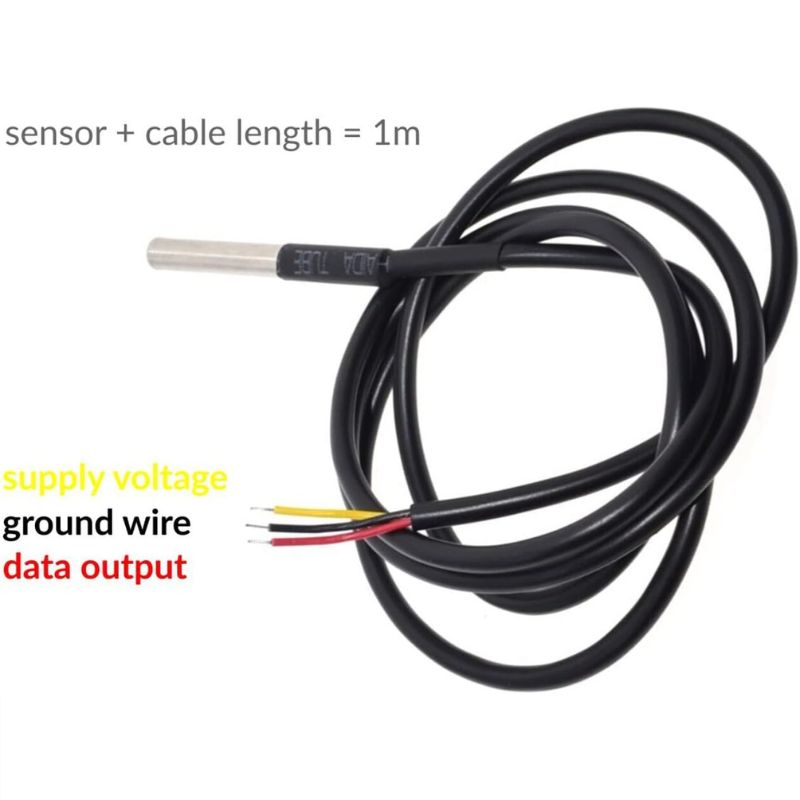

This Digital Temperature Sensor with the simple 1-Wire Interface measures temperatures between -55 and +125 degrees Celsius.
Libraries for this sensor type and different programming environments, for example for Arduino or Raspberry, are available and easy to find.
The sensor element is conditionally watertight. Use it under wet conditions at your own risk.
A temperature alarm condition can be programmed right in the sensor (nonvolatile).
Every sensor element comes with a unique, digital serial number. Therefore, multiple sensors can be connected to the same 1-Wire interface.
– overall length is 100cm
– probe size is about 50 x 6mm
– voltage supply 3.0 to 5.5V DC
– operating current ca. 1.5mA
– standby current ca. 3A
– transmission current 1mA/4mA (logic 1/0)
Please refer to the DS18B20 data sheet for more information.
Comprehensive information about how to use DS18B20 with Arduino.
-
Part No
SPEDE-011820
-
Manufacturer
-
Stock No
1814-CA5
-
SKU No
272446
*Prices subject to change without notice. We reserve the right to limit quantities.
To purchase bulk quantities, Please contact our Sales Department
(+1-416-494-8999) or email shop@sayal.com
