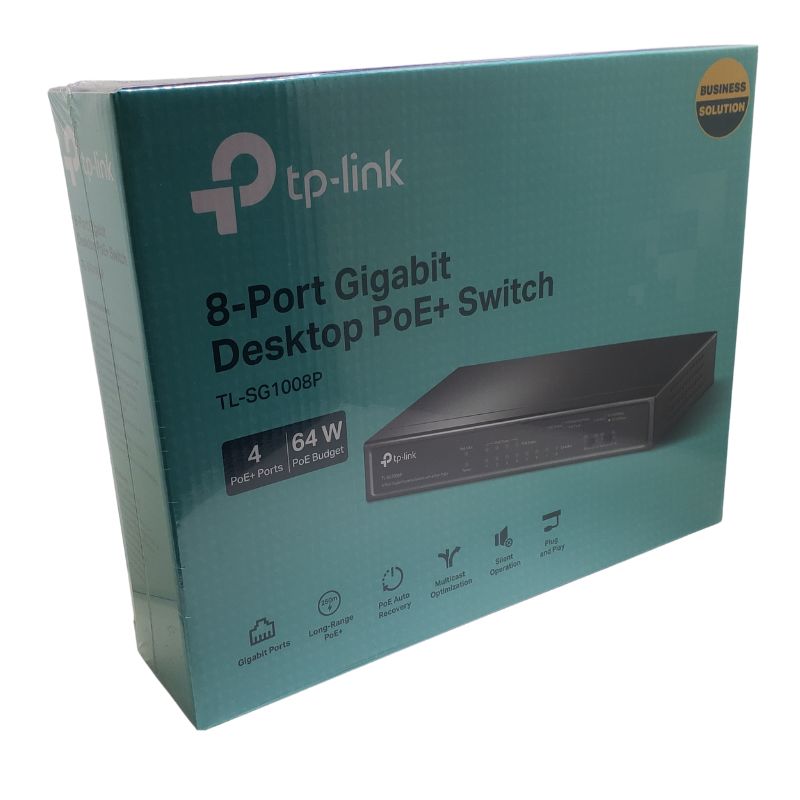

8-Port Gigabit Desktop Switch with 4-Port PoE
8 10/100/1000Mbps RJ45 ports
With four PoE ports, transfers data and power on one single cable
Working with IEEE 802.3af compliant PDs, expands home and office network
Requires no configuration and installation
802.1p/DSCP QoS enable smooth latency-sensitive traffic
Supports PoE power up to 15.4W for each PoE port
Supports PoE power up to 55W for all PoE ports
HARDWARE FEATURES
Interface 8 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity Fanless
Physical Security Lock No
External Power Supply External Power Adapter(Output: 48VDC / 1.25A)
PoE Ports (RJ45) Standard: 802.3 af compliant
PoE Ports: Port1- Port4
Power Supply: 55W
Backbound Bandwidth 16Gbps
Mac Address Table 4K
Dimensions ( W x D x H ) 6.7*3.9*1.1 in. (171*98*27 mm)
Max Power Consumption 5.49W(220/50Hz. no PD connected)
65.24W(220/50Hz. with 55W PD connected)
Max Heat Dissipation 18.73BTU/h(no PD connected)
222.60BTU/h(with 55W PD connected)
SOFTWARE FEATURES
Transmission Method Store-And-Forward
Advanced Functions Compatible With IEEE 802.3af Compliant PDs
Priority Function
Mac Address Auto-Learning And Auto-Aging
EEE802.3x Flow Control
802.1p/DSCP QoS
OTHERS
Certification CE, FCC, RoHS
Package Contents TL-SG1008P, Power Adapter, Installation Guide
Environment Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5%~90% non-condensing
