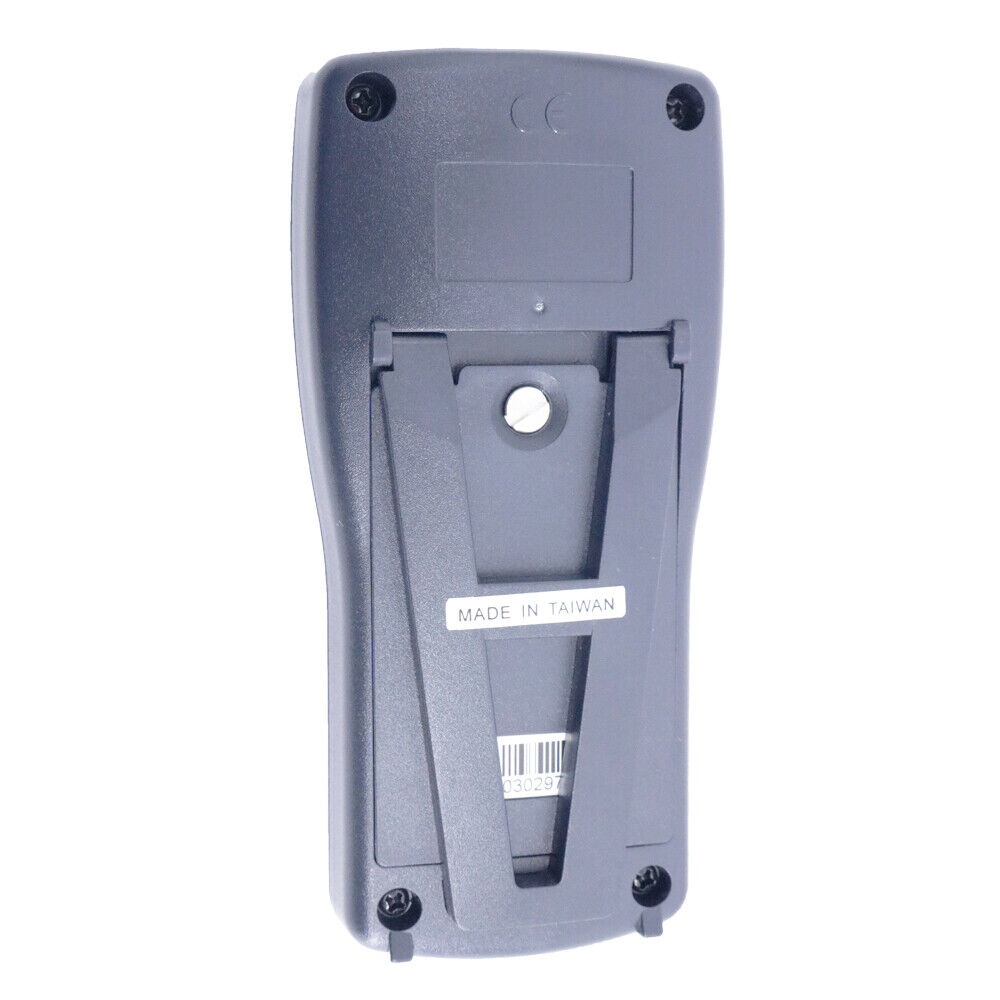

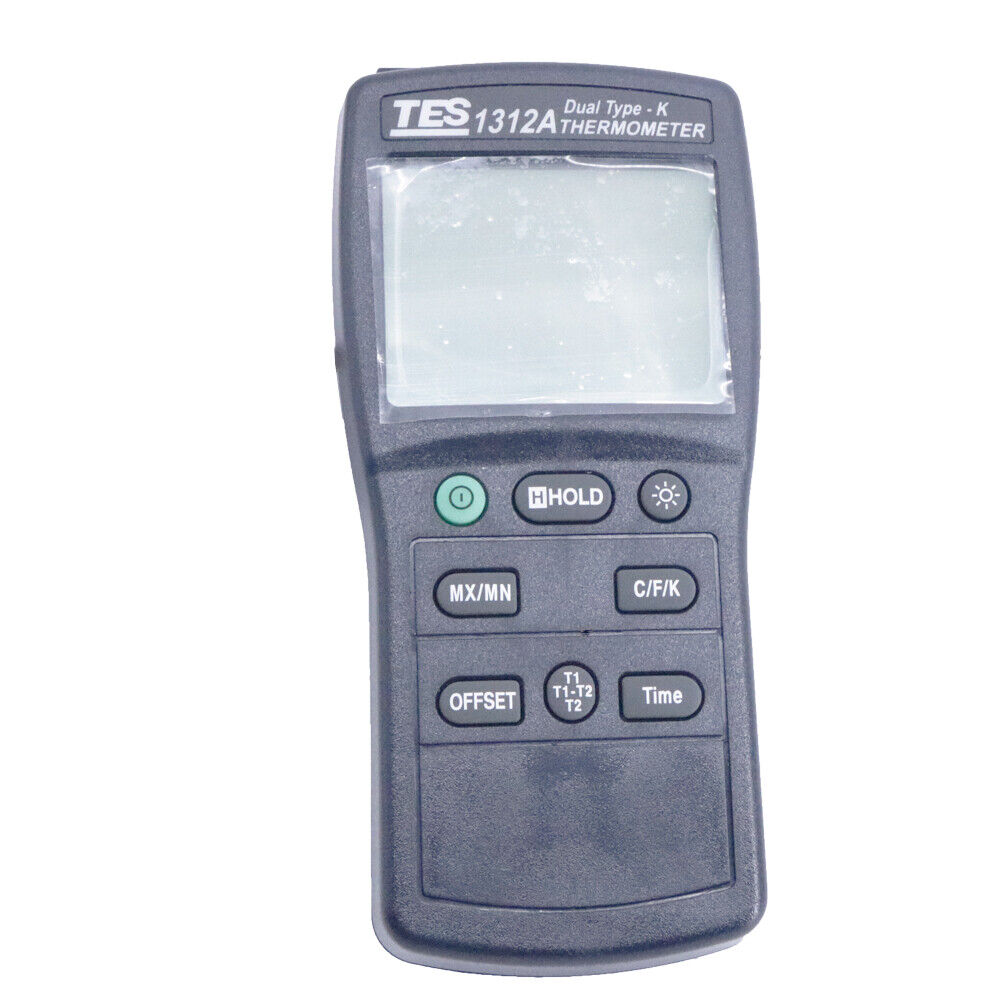

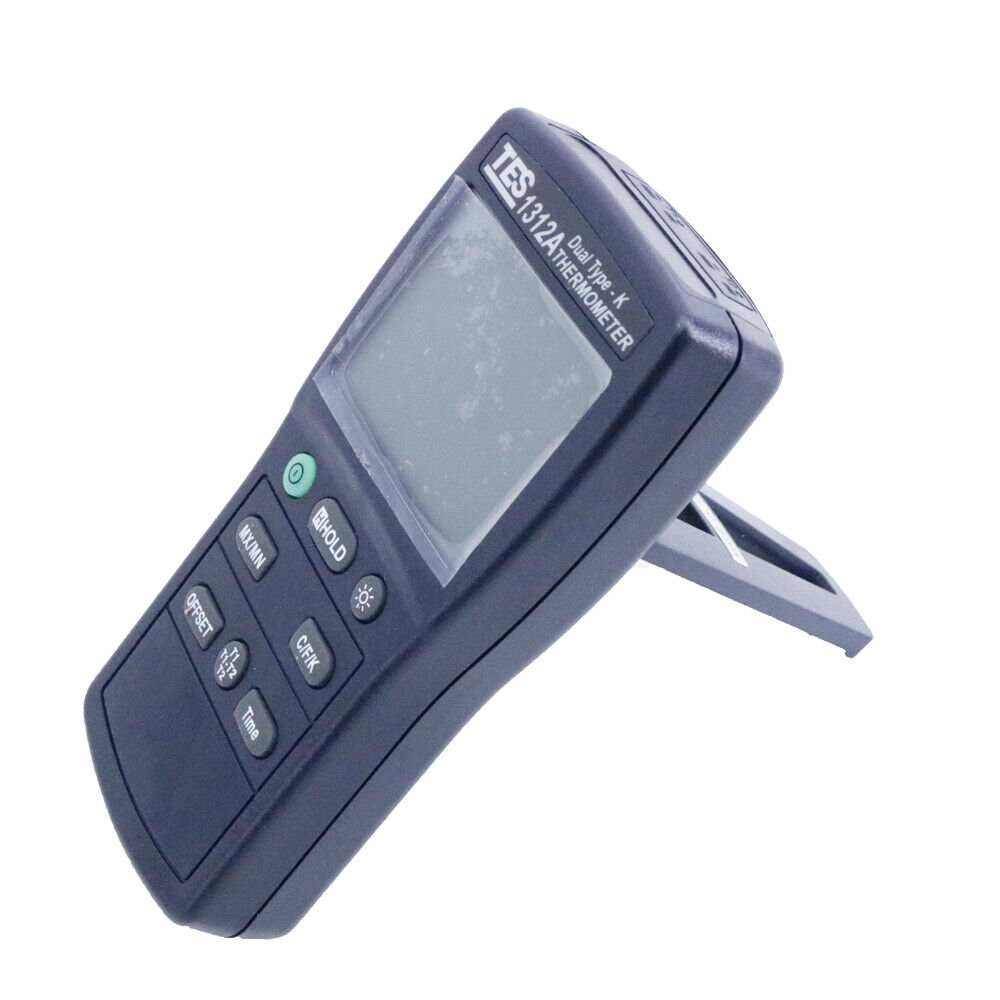

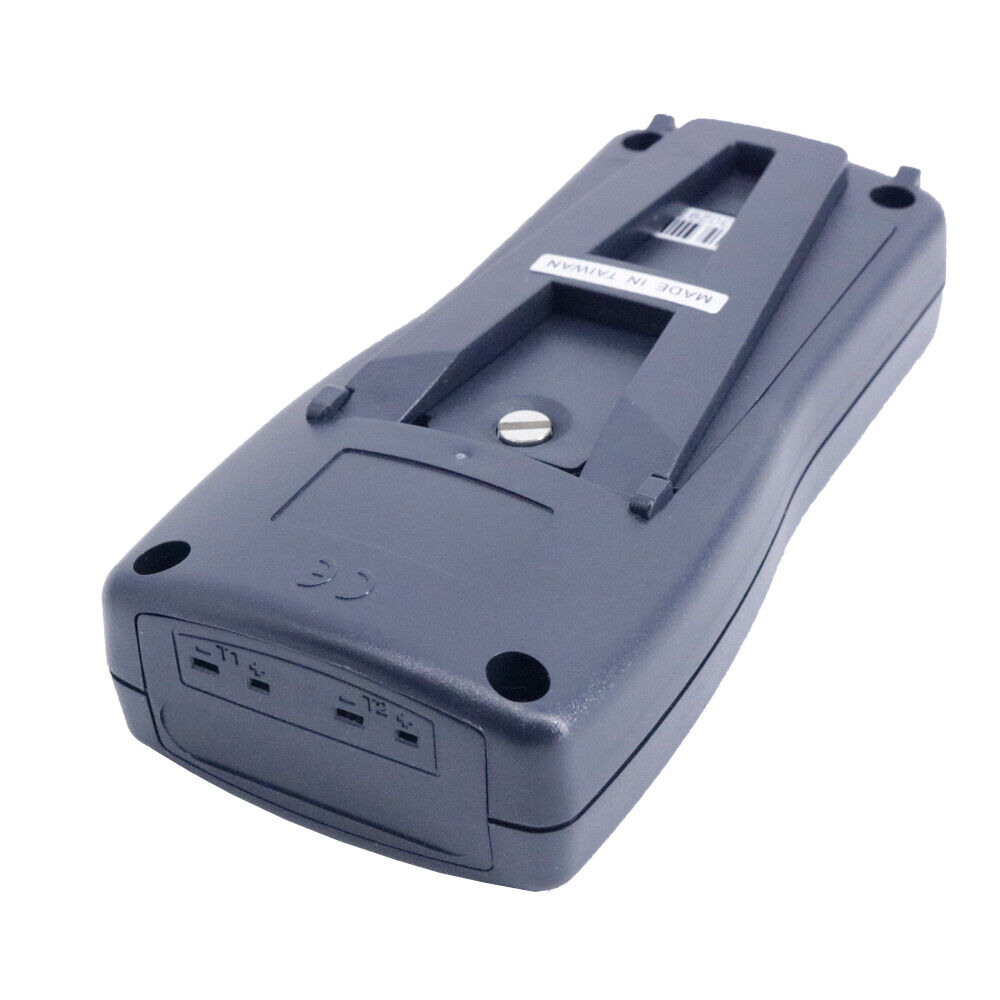

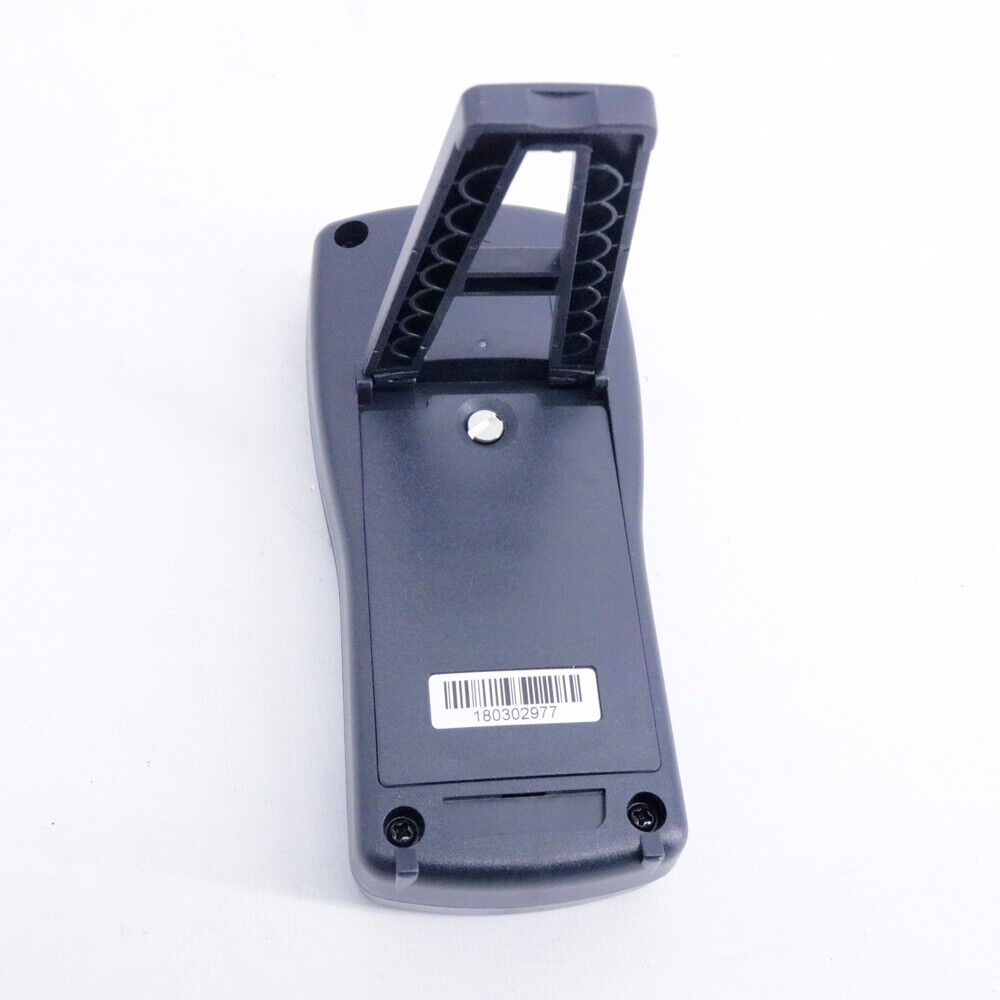

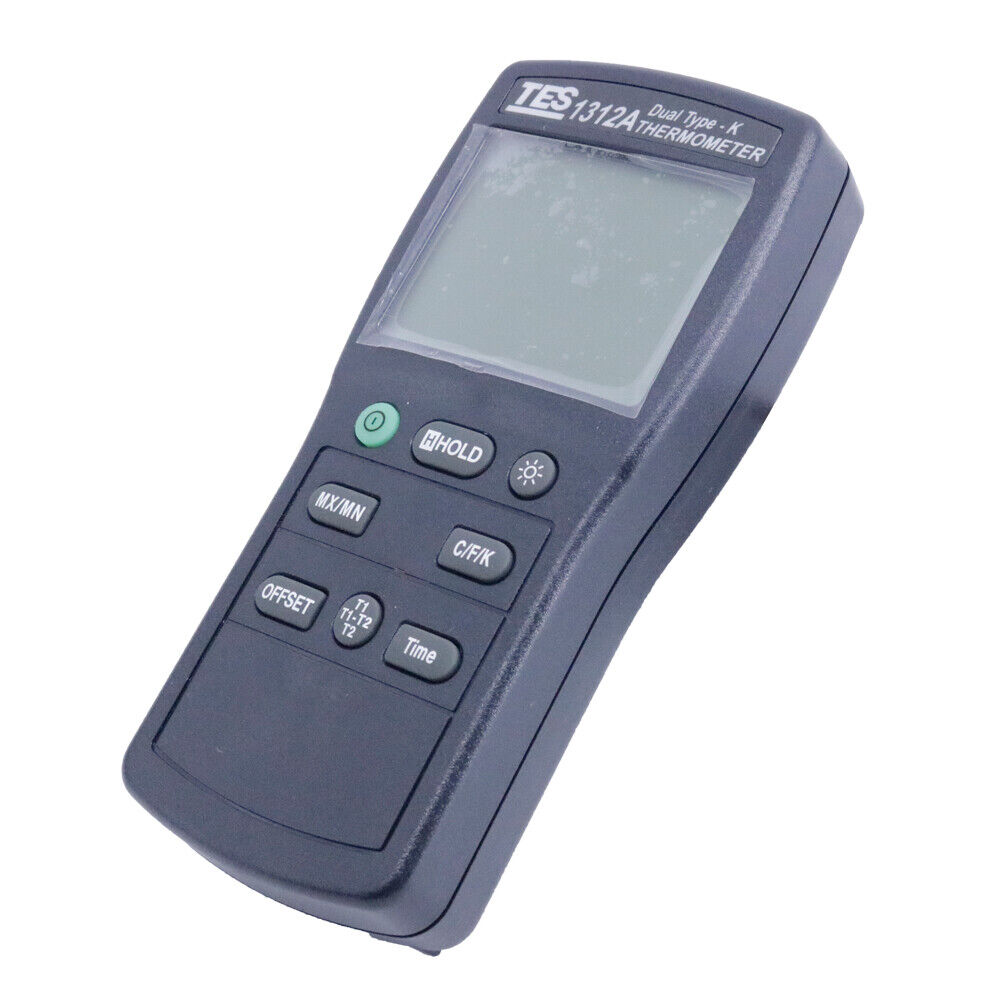

Type "K" Thermocouple Input Switchable Resolution 0.1° / 1° With℃& ℉ switching Max / MIN Function Data Hold Function Room Temperature Compensated T1 & T2 dual points display T1 - T2 differential measurement Flip-up stand Backlight LCD display

---

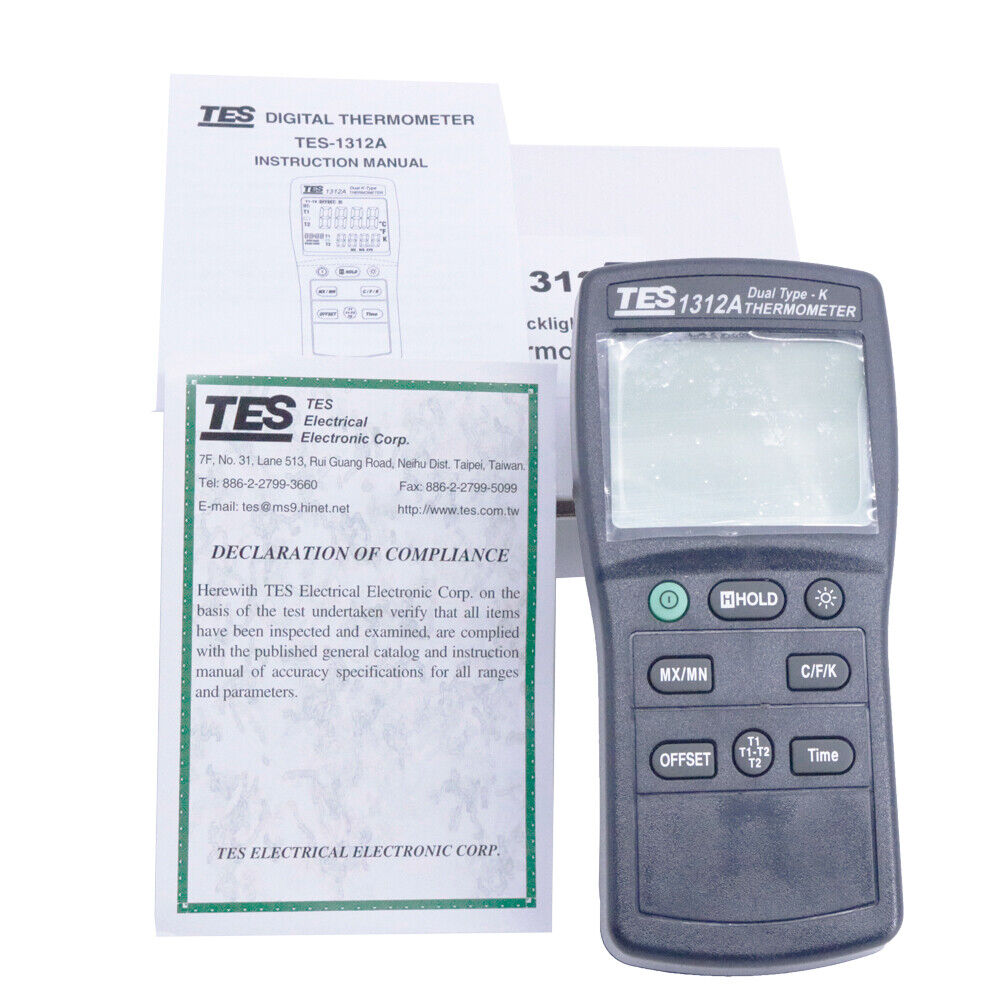

Model TES-1312A Measuring Rang - 50 ºC ~ 1350 ºC, - 58 ºF ~ 1999 ºF Sensor K Type Thermocouple Input Dual Channel (TES-1312A) Resolution - 50 ºC ~ 199.9 ºC.....0.1 ºC, - 50 ºF ~ 199.9 ºF.....0.1 ºF Accuracy TES-1312A : - 50 ºC ~ 1000 ºC... +/- (0.3%rdg + 1 ºC) - 50 ºF ~ 1832 ºF... +/- (0.3%rdg + 2 ºF) 1000 ºC ~ 1300 ºC... +/- (0.5%rdg + 1 ºC) 1832 ºF ~ 1999 ºF... +/- (0.5%rdg + 2 ºF) Temperature Coefficient Less that 0.1 times the applicable accuracy specification per ºC (ºF) Input Protection 60V DC or 24 Vrms AC maximum input voltage on any Combination of input Connector Sampling Rate 2.5 times/sec Operating / Storage Conditions 0 ºC ~ 40 ºC < 80%RH , -10 ºC ~ 60 ºC < 70%RH Power Source 6 pcs AAA size Battery Size 135 mm(L) x 72 mm(W) x 31 mm(H) Weight 235g Accessories Battery, Instruction, Manual
