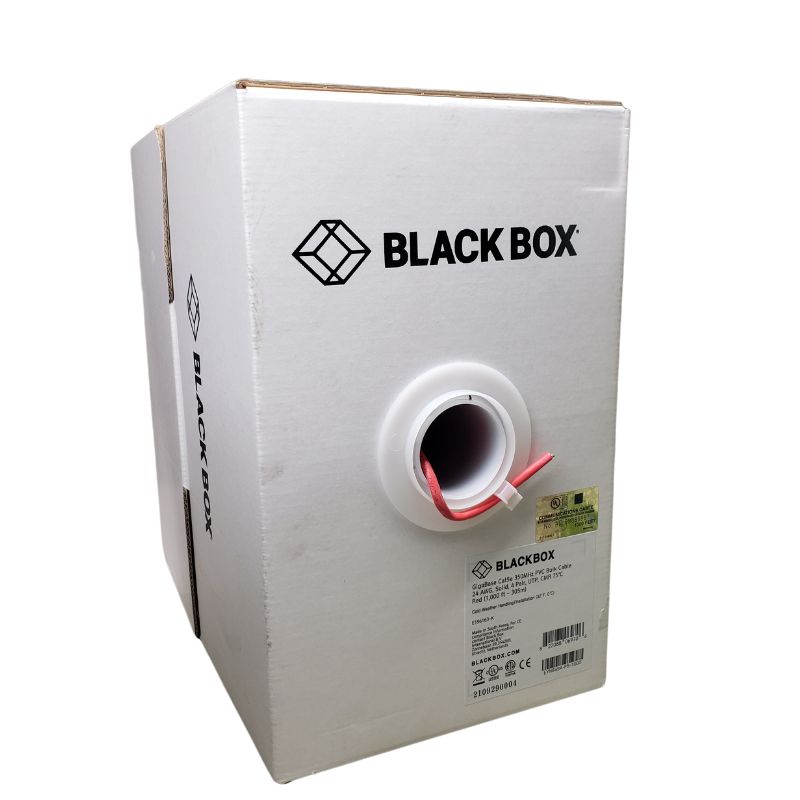

GigaBase® CAT5e 350-MHz Solid Ethernet Bulk Cable - Unshielded (UTP), CMR PVC, 1000-ft. (304.8-m) Pull-Box
- Cold Weather handling/Installation (32degree F , 0 degree C)
- Sweep tested and characterized to 350 MHz
- CAT5e compliance means dependable compatibility for future applications
- Ideal for voice, 10BASE-T, 4-/16-Mbps Token Ring, 100BASE-TX, 100-Mbps TP-PMD, T1, 155-Mbps ATM, 622-Mbps ATM
- Low attenuation and power-sum crosstalk characteristics over an extended frequency range
- Longitudinal rip cord for easy jacket opening
- Accu-Pull Measuring System
- Descending sequential two-foot markings on cable
- TAA Compliant, GSA Certified, ETL Component Level Verified
|
ACR (Minimum at 100 m) |
16.3 dB at 100 MHz;
1.4 dB at 200 MHz | | Attenuation (Minimum at 100 m) | 22.0 dB at 100 MHz;
32.4 dB at 200 MHz;
41.0 dB at 300 MHz;
44.9 dB at 350 MHz | | Cable Type | 4-pair UTP | | Capacitance Unbalance (Maximum) | 3300 pF/km (Pair to ground) | | Characteristic Impedance | 1–350 MHz: 100 ± 15 ohms | | Conductor | 24 AWG, solid, bare copper | | Conductor Resistance | 93.8 ohm/68° F (20° C) maximum | | Delay Skew (Maximum) | 1–350 MHz: 40 nS/100 m | | EL-FEXT (Minimum at 100 m) | 23.8 dB at 100 MHz;
17.7 dB at 200 MHz;
14.2 dB at 300 MHz;
12.9 dB at 350 MHz | | NEXT (Minimum at 100 m) | 38.3 dB at 100 MHz;
33.8 dB at 200 MHz;
31.2 dB at 300 MHz;
30.1 dB at 350 MHz | | PS-ACR | 14.3 dB at 100 MHz | | PS-ELFEXT | 20.8 dB at 100 MHz;
14.7 dB at 200 MHz;
11.2 dB at 300 MHz;
9.9 dB at 350 MHz | | PS-NEXT | 36.3 dB at 100 MHz;
31.8 dB at 200 MHz;
29.2 dB at 300 MHz;
28.1 dB at 350 MHz | | Return Loss | 20.1 dB at 100 MHz | | Velocity of Propagation | 62.1% at 350 MHz |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
*Prices subject to change without notice. We reserve the right to limit quantities.
-
Part No
EYN849A-PB-1000
-
Manufacturer
BLACK BOX
-
Stock No
WSC-3227BB
-
SKU No
264163
To purchase bulk quantities, Please contact our Sales Department
(+1-416-494-8999) or email shop@sayal.com
