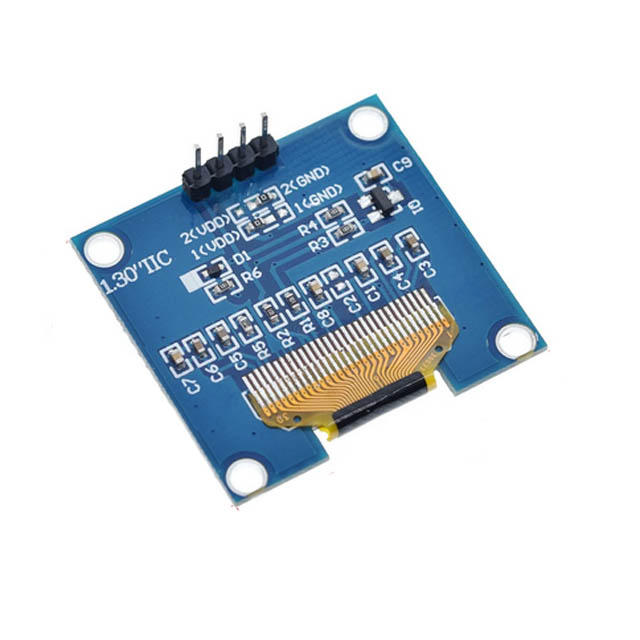

1.3 Inch OLED Module White Color 128X64 OLED LCD LED Display Module 1.3 IIC I2C SPI Communicate for arduino Diy Kit
PRODUCT
1.3 Inch OLED Display 4PIN
Resolution: 128X64
Super wide viewing angle: more than 160 °(maximum viewing angle display a screen)
Ultra-low power consumption: normal display 0.08W (far below the TFT display)
Supply range: DC 3v-5V (without any changes, directly compatible with common 3.3V and 5V power supply system)
Industrial grade: Operating temperature range -30 degree~ 70 degree
The ultra-small size: (length)35.4MM (W)33.5MM* (thickness) 4.3MM
Support for multiple operating modes: 3-wire SPI,4 wire SPI,IIC
Chip select cs signal, you can achieve multiple SPI or IIC device on the same bus work Compatible with 3.3V and 5V control chip I/O level (without any set, directly compatible) OLED screen, internal drive chip: SH1106 (Operation and SSD1306 same)
*Prices subject to change without notice. We reserve the right to limit quantities.
-
Part No
SH1106
-
Manufacturer
-
Stock No
1814-FA1
-
SKU No
258836
