PSC-4136 is a 100W Switching Mode Power Supply with current limiting
control, featuring three fully isolated outputs which can be used
independently, simultaneously or in combination. The variable output is
also remotely programmable with the USB interface.
Features:
- Variable Output: 1-36VDC / 0.25-3A
- Fixed Output: 3.3 or 5VDC (selectable) / 1.8A, 12VDC / 0.8A
- Constant Voltage or Constant Current with automatic crossover
- Fully isolated outputs

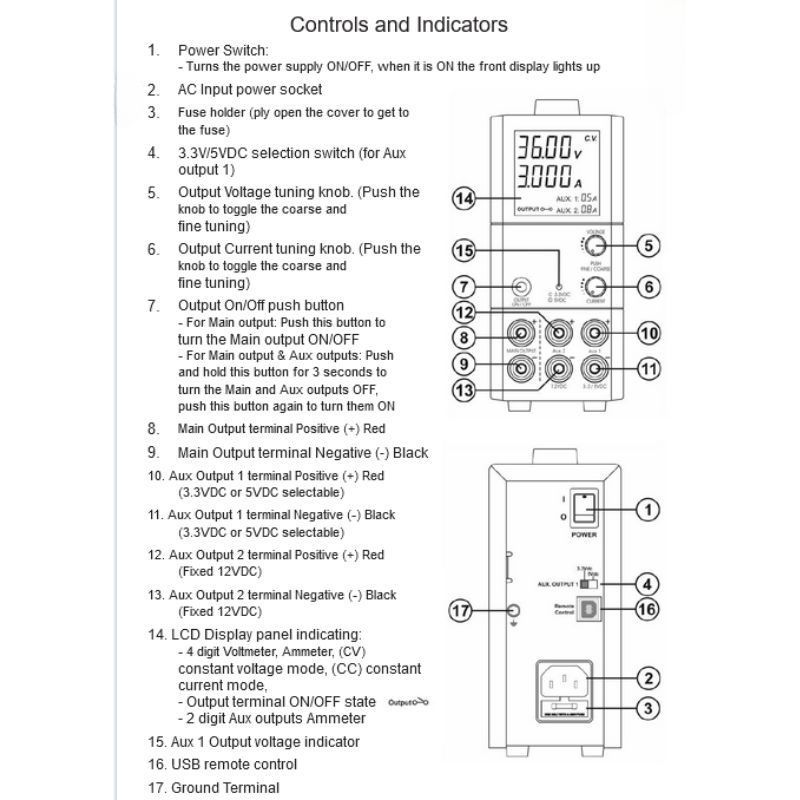

- Output On-Off switch on front panel

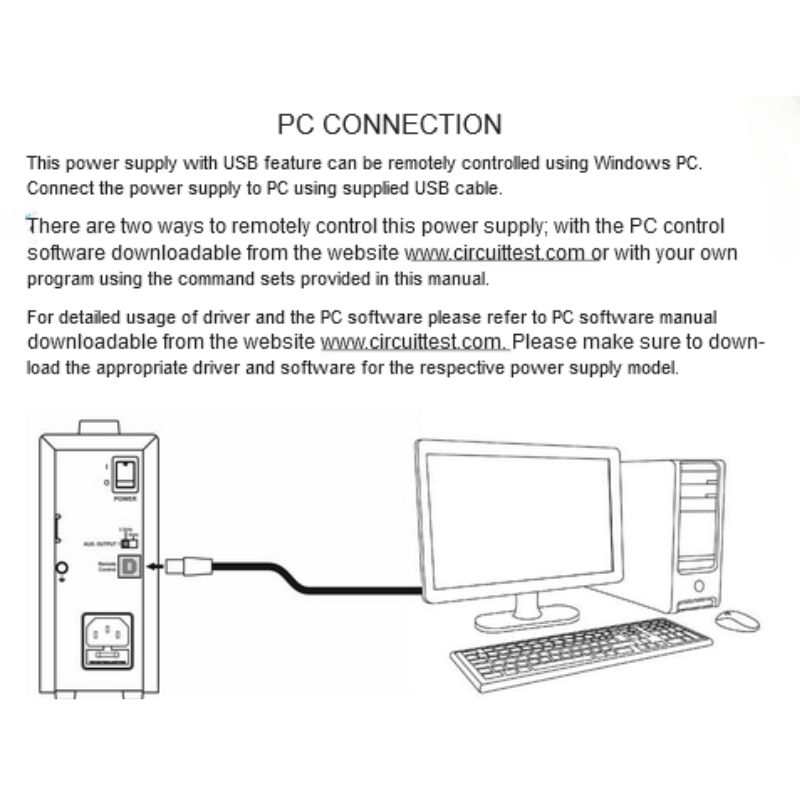

- USB port to interface with computer
- Rotary encoder for easy tuning of voltage and current
- 4-Digit LCD Voltage and Current displays
- Tracking OVP (output over voltage protection)
- Natural convection
*Prices subject to change without notice. We reserve the right to limit quantities.
-
Part No
PSC-4136
-
Manufacturer
Circuit Test
-
Stock No
PJE-3235
-
SKU No
254529
To purchase bulk quantities, Please contact our Sales Department
(+1-416-494-8999) or email shop@sayal.com
Circuit Test PSC-4136 Document 1
