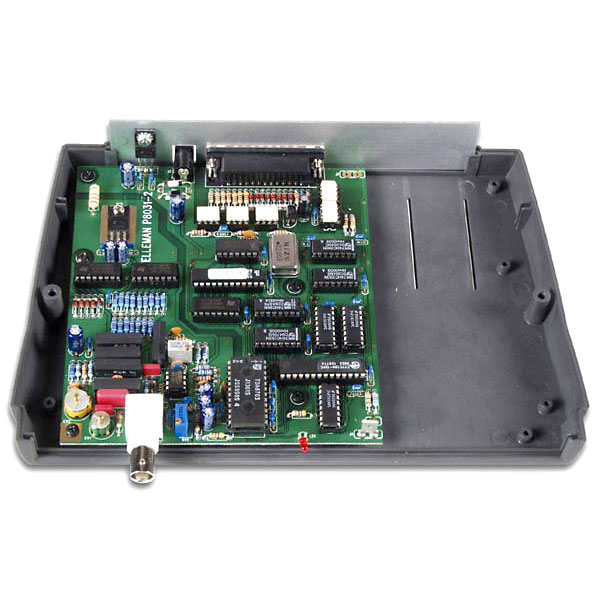

This is a digital storage oscilloscope, using a computer and its monitor to display waveforms.
All standard oscilloscope functions are available in the Windows program supplied. Its operation is just like a normal oscilloscope.
Connection is through the computer's parallel port, the scope is completely optically isolated from the computer port.
Features
- 1 channel
- Input impedance: 1Mohm / 30pF
- Frequency response: 0Hz to 12MHz (+- 3dB)
- Step markers for voltage, time and frequency.
- Vertical resolution: 8 bit
- Optically isolated from computer.
- Record and display of screens & data.
- Auto set-up function.
- Supply voltage: 9 - 10V DC / 500mA
- Dimensions: 9" x 6.5" x 1.8"
- Weight: 14oz
- Minimum System Requirements:
IBM compatible PC
Windows 98, ME, (Win2000 or NT possible)
- XP
SVGA display card (min. 800x600)
- mouse
- free printer port LPT1, LPT2 or LPT3
- CD Rom player
- Oscilloscope:
time-base: 0.1us to 100ms per division
- Trigger source: CH1 or free run
- Trigger level: adjustable per/division
- Input sensitivity: 10mV to 3V per division
- Record length: 4079 samples
- Sampling frequency: 800Hz to 32MHz (Real time)
- True RMS readout (only AC component)
- Transient Recorder:
timescale: 20ms/div to 2000s/div
max
- Record time: 9.4hour/screen
- Automatic storage of data
- Automatic recording for more than 1 year
- Markers for time and amplitude
- Zoom function
- Spectrum Analyzer:
frequency range: 0 .. 400Hz to 16MHz
- Linear or Logarithmic timescale
- Zoom function
*Prices subject to change without notice. We reserve the right to limit quantities.
-
Part No
K8031
-
Manufacturer
Velleman
-
Stock No
2511-BJ1
-
SKU No
213206
Limited Stock Available To purchase, Please contact our Sales Department
(+1-416-494-8999) or email shop@sayal.com
Velleman K8031 Document 1
